Removing Wire Harness For Convertible Top: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

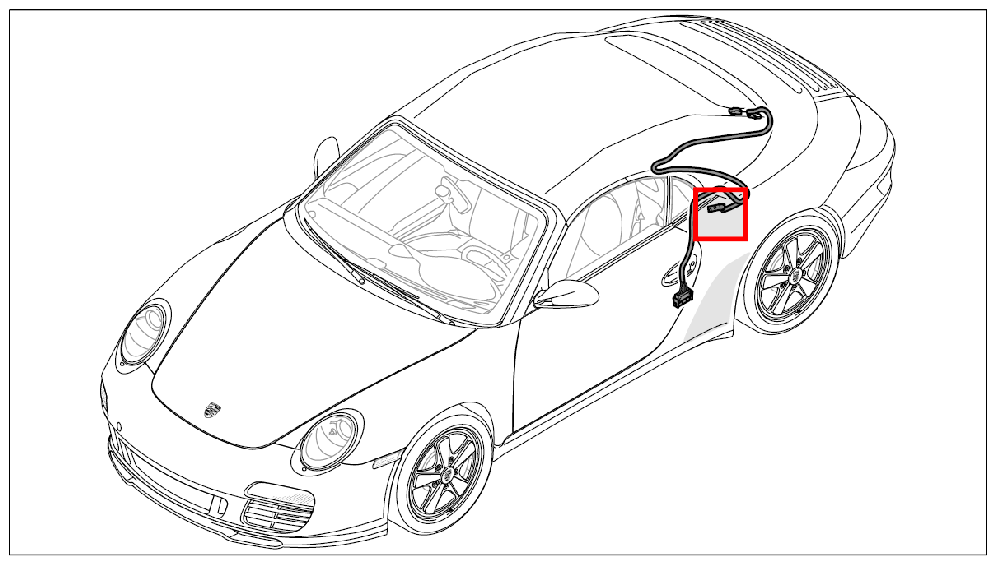

Fig 1: Identifying Wire Harness For Convertible Top Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull wire harness for convertible top -1- out of the clip -2- , release plug connection at the locking lugs -arrows A- and disconnect it -arrow B- .

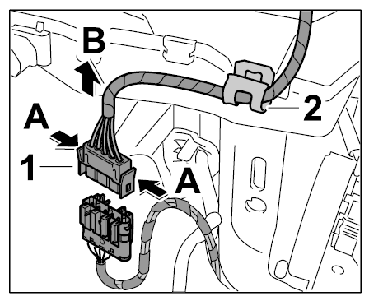

Fig 2: Disconnecting Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove splash guard.

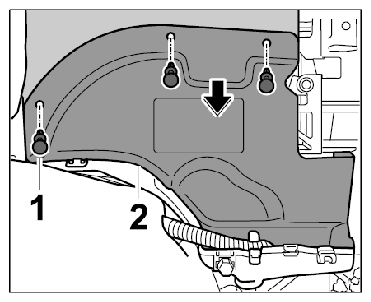

Fig 3: Removing Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Press out fixing clips -1- close to the splash guard -2- (-arrow- ).
2. 2.2. Pull the splash guard -1- up out of the clips -2- in the water drip pan -arrow- .

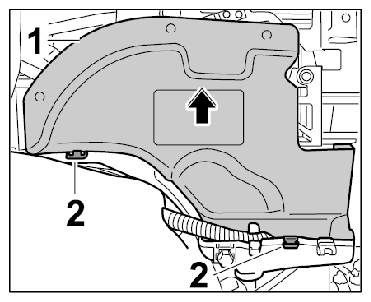

  Fig 4: Removing Splash Guard
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove wire harness on the convertible top support.

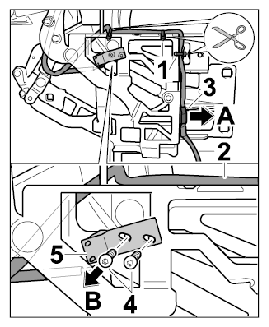

Fig 5: Removing Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Remove tie-wrap -1- .
2. 3.2. Unclip wire harness -2- at the retaining clip -3- (-arrow A- ).
3. 3.3. Unscrew fastening screws -4- and remove the microswitch -5- (-arrow B- ).
Information

Convertible top covering removed for a clearer view.
Remove wire harness at the C-pillar and corner bow joint.

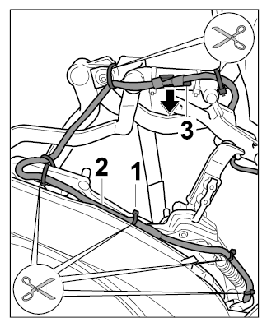

Fig 6: Removing Wire Harness At C-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Remove tie-wrap -1- .
2. 4.2. Unclip wire harness -2- at the retaining clips -3- (-arrow- ).
Remove wire harness at rear window.

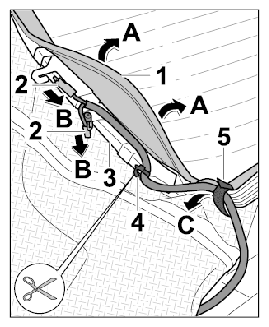

Fig 7: Removing Wire Harness At Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Fold the cover -1- in slightly -arrows A- .
2. 5.2. Pull off both connectors -2- at the rear window -3- (-arrows B- ).
3. 5.3. Remove tie-wrap -4- .
4. 5.4. Open the Velcro fastener -5- (-arrow C- ).
