Removing Ground Strap And B+ Line Of Battery

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

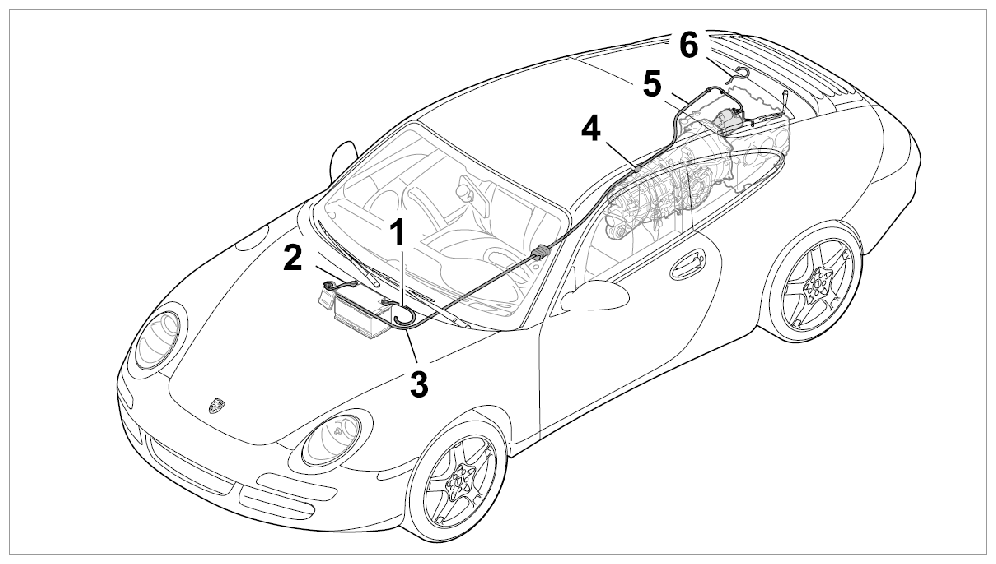

Fig 1: Identifying Wire Harness For Battery Wiring Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground strap for battery
B+ line for battery

Remove ground strap for battery -1- .

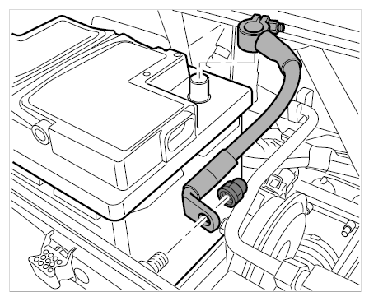

Fig 2: Identifying Ground Strap From Battery To Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unscrew fastening nut of battery ground strap to body and remove ground strap for battery.
Remove B+ line for battery -2- .

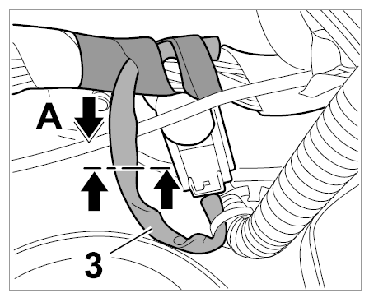

Fig 3: Removing B+ Line For Battery
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Cut through the positive cable of main wire harness -3- at the place indicated -arrows- .
2. 2.2. Remove binding band from main wire harness until the sheathing of the positive cable -3- can be removed -Arrow A- .
3. 2.3. Unscrew B+ line from battery. → Removing Battery - chapter on "Removing"
4. 2.4. Release and pull off B+ line from power distributor → Removing Power Distributor - chapter on "Removing"
5. 2.5. Remove B+ line for battery.
