Removing Engine Ground Strap

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

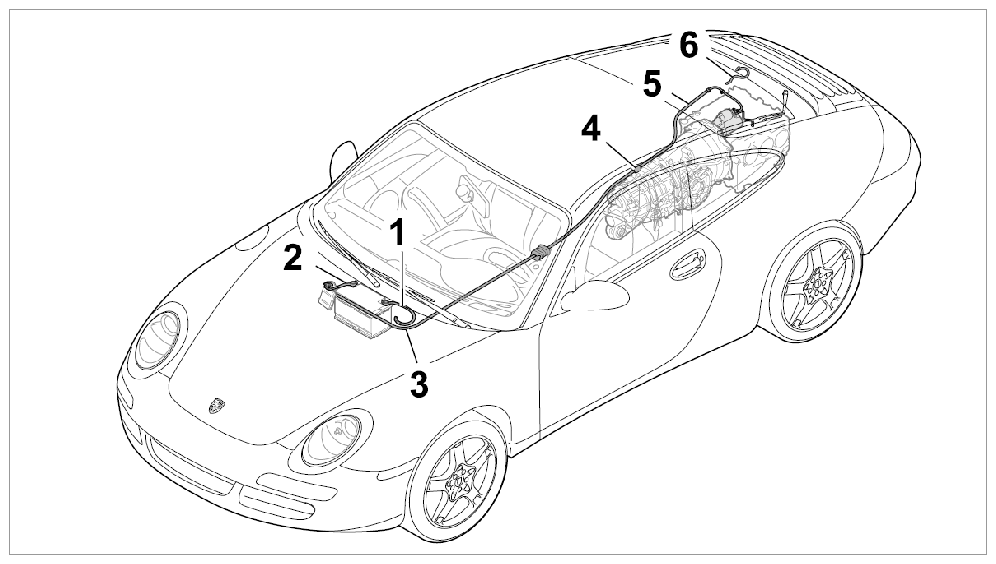

Fig 1: Identifying Wire Harness For Battery Wiring Installation Position
G09831277Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 6  - Engine ground strap
  1. Remove engine ground strap -6-  .

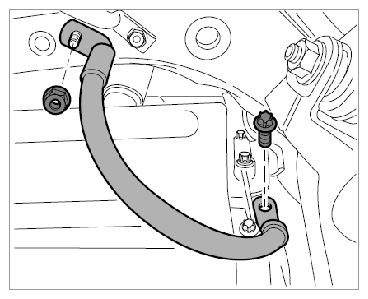

    Fig 2: Identifying Engine Ground Strap And Screws
    G09831278Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Unscrew fastening screws on engine, fastening nut on body, and remove ground strap.
