Removing B+ Wire Harness For Engine In Vehicles With Manual Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Screw off fastening nut on generator -1- and remove cable shoe.

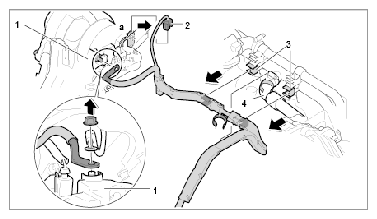

Fig 1: Unclipping B+ Wire Harness For Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release connector -2- for terminal 50 on engine wire harness -a- and pull it off.
Unclip wire harness from the cable ducts on the combination holder -3- for the engine.
Unclip wire harness from the water return hose -4- .
Unscrew fastening screw -5- for the cable duct on the crankcase.

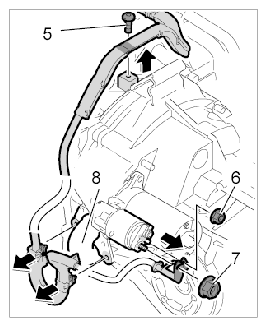

Fig 2: Loosening B+ Wire Harness On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off fastening nuts -6, 7- on the starter.
Unclip cable duct on the ventilation flange -8- at two places.
Remove wire harness.
