Removing B+ Line From Starter To Transmission Connection Point

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

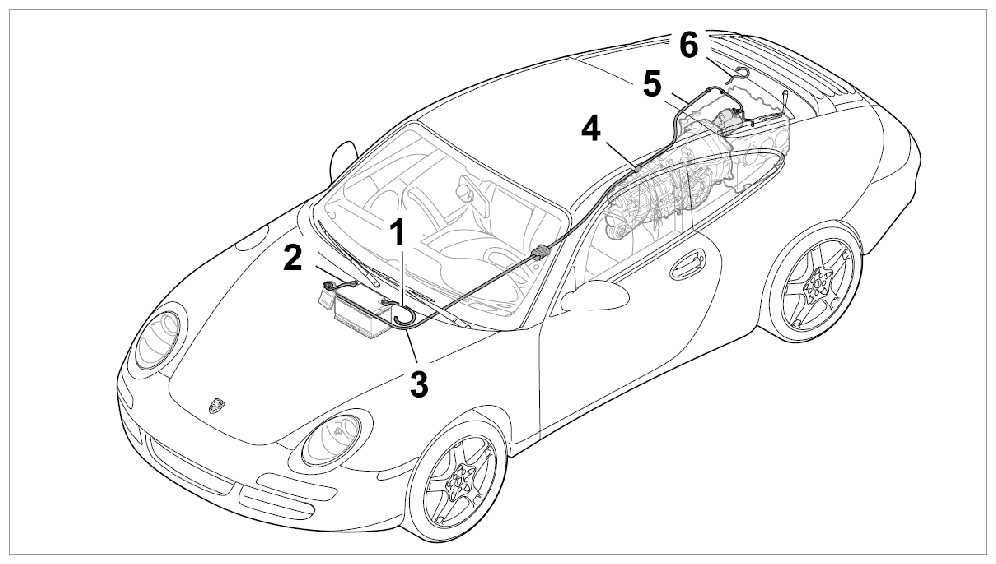

Fig 1: Identifying Wire Harness For Battery Wiring Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4 - Connection point of B+ box on transmission
5 - B+ line from starter to transmission connection point

Screw off fastening nut on starter lead at terminal 30 and remove it. → Removing Starter - chapter on "Removing"
Unclip B+ line -5- at cable duct for engine wire harness.

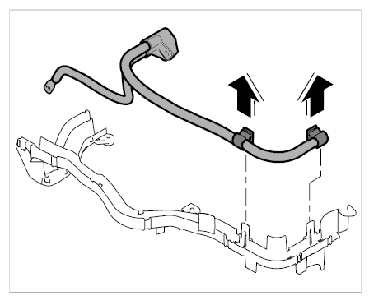

Fig 2: Unclipping B+ Line To Starter At Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Unclip B+ line at cable duct -arrows- .
Unscrew B+ line -5- at box for B+ line -4- .

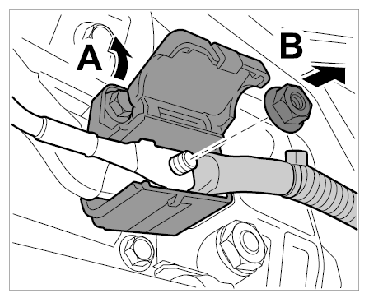

Fig 3: Removing B+ Line Screw At Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Open box for B+ line at transmission -Arrow A- , unscrew fastening nut -Arrow B- and remove the B+ line.
Information

For vehicles with manual transmission.
Remove cable duct of B+ line -5- at manual transmission. → Removing Transmission - chapter on "Removing"
Information

For vehicles with automatic transmission.
Remove cable duct of B+ line -5- at automatic transmission.→ Removing Automatic Transmission - chapter on "Mounting"
Remove B+ line -5- .
