Installing Ground Strap And B+ Line Of Battery

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

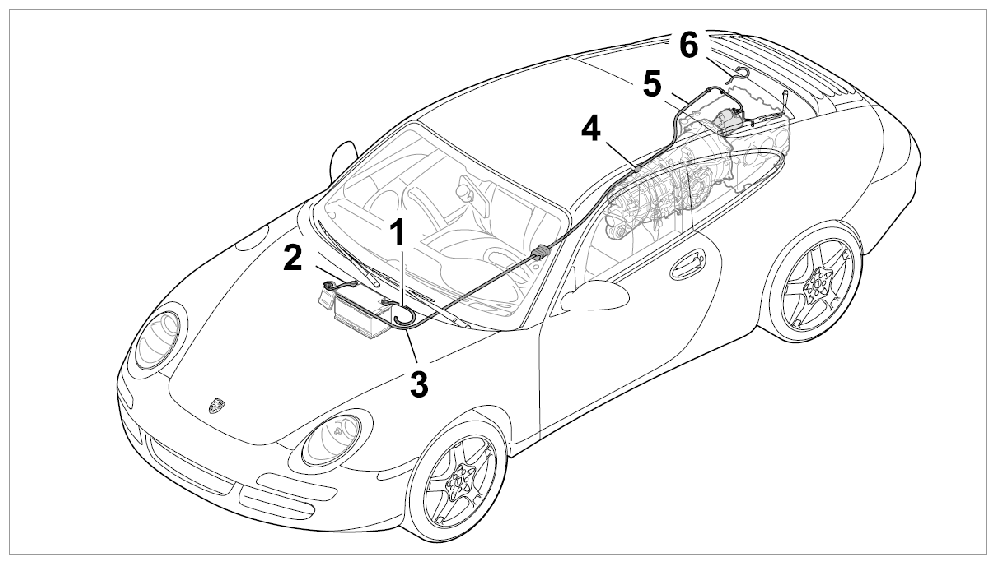

Fig 1: Identifying Wire Harness For Battery Wiring Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground strap for battery
B+ line for battery

Install battery ground strap -1- .

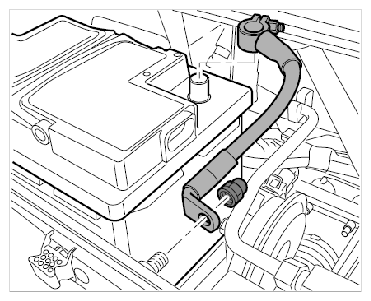

Fig 2: Identifying Battery Ground Strap To Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Secure battery ground strap to the body with the fastening nut. → Tightening torque: 15 Nm (11 ft. lb.)
Install battery B+ line -2- .
1. 2.1. Push the B+ line of the battery as far as it will go onto the mounting point at the power distributor. Check that the B+ line is seated securely. → Installing Power Distributor - section on "Installing"
2. 2.2. Secure B+ line to the battery. → Tightening torque: 5 Nm (3.5 ft. lb.) → Removing Battery - section on "Removing"
Information

The electric lines are located in the plenum panel and are thus exposed to the highest demands.

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the Repair Kit For Harnesses Nr. 155-1 .

Crimping samples are to be prepared before beginning work.
Crimp the positive cable.

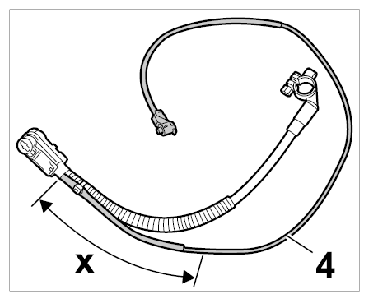

Fig 3: Cutting Positive Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Cut and strip the new positive cable -4- to the -dimension X = approx. 20 cm- .
2. 3.2. Strip original positive cable in the main wire harness -3- and slide on shrink-fit hose -5- .

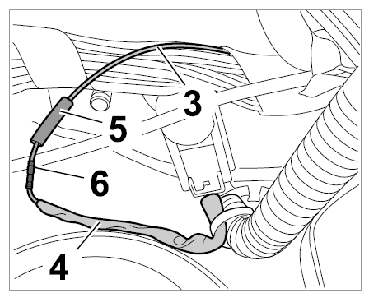

  Fig 4: Identifying Positive Cable And Shrink-Fit Hose
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Crimp crimping sleeve -6- with the hand crimping pliers from the Repair Kit For Wire Harnesses Nr. 155-1 to the positive cable in the main wire harness -3- .
4. 3.4. Crimp crimping sleeve -6- with the hand crimping pliers from the Repair Kit For Wire Harnesses Nr. 155-1 to the new positive cable -4- . Check crimp connection carefully.
5. 3.5. Slide shrink-fit hose over the crimp connection and carefully shrink it to make it watertight using the hot-air blower with special nozzle (recommended accessories for the Repair Kit For Wire Harnesses).
6. 3.6. Secure positive cable to the main wire harness with adhesive tape.
