Installing B+ Wire Harness For Engine In Vehicles With Manual Transmission

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place wire harness in position.

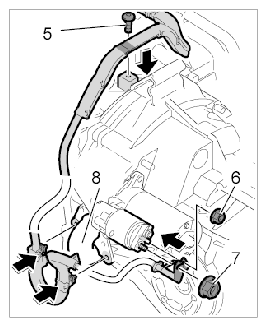

Fig 1: Securing Wire Harness On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cable duct on the ventilation flange -8- at two places.
Connect B+ line to the starter and secure with fastening nuts -6, 7- .
Position cable duct on transport eyebolt and secure to the engine housing with the fastening screw -5- .
Clip in wire harness on the water return hose -4- .

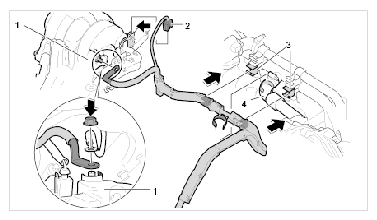

Fig 2: Securing B+ Wire Harness For Engine
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip wire harness into the cable ducts on the combination holder -3- for the engine.
Insert connector -2- for terminal 50 on the engine wire harness until it engages securely.
Attach cable shoe to the generator and secure with the fastening nut -1- .
