Installing B+ Line From Starter To Transmission Connection Point

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

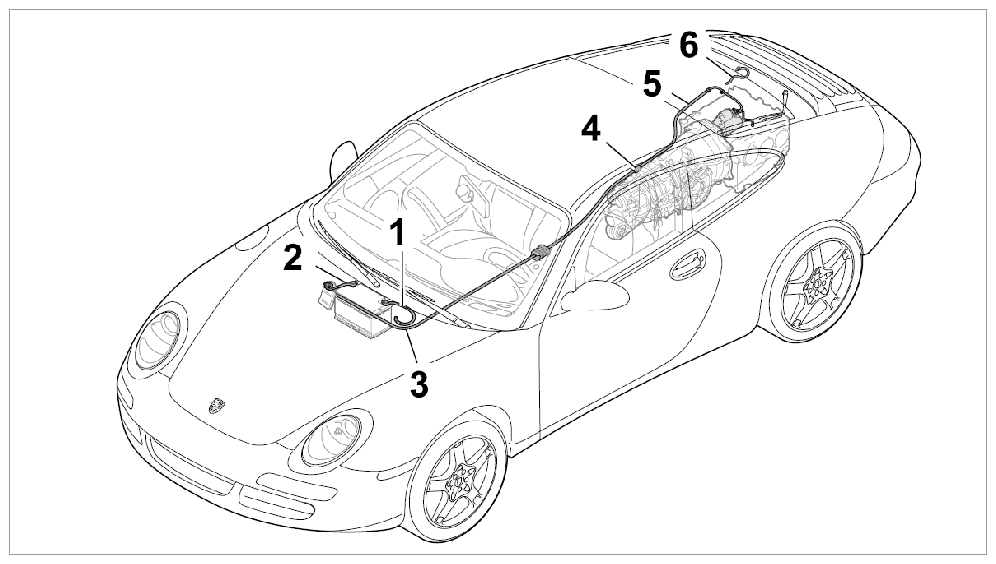

Fig 1: Identifying Wire Harness For Battery Wiring Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4 - Connection point of B+ box on transmission
5 - B+ line from starter to transmission connection point

Lay B+ line -5- .
Information

For vehicles with manual transmission.
Install cable duct of B+ line -5- at manual transmission. → Installing Transmission - chapter on "Installing"
Information

For vehicles with automatic transmission.
Install cable duct of B+ line -5- at automatic transmission. → Mounting Automatic Transmission - chapter on "Removing and Mounting"
Screw down B+ line -5- at box for B+ line -4- .

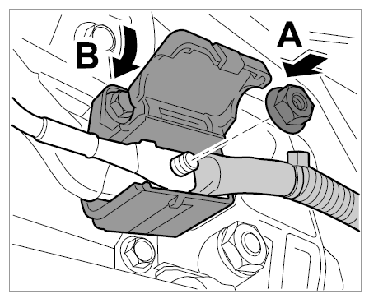

Fig 2: Installing B+ Line Screw At Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Insert B+ line into the box and tighten with the fastening nut -Arrow A- . → Tightening torque: 23 Nm (17 ft. lb.)
2. 4.2. Close box for B+ line on transmission -Arrow B- .
Clip in B+ line -5- at cable duct for engine wire harness.

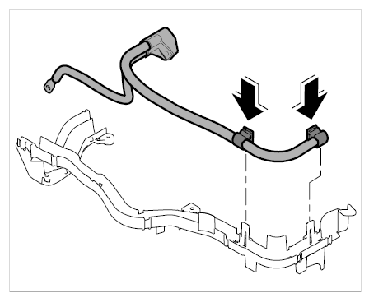

Fig 3: Clipping In Starter Lead At Cable Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 5.1. Clip in B+ line at cable duct -arrows- .
Position starter lead for terminal 30 and secure with fastening nut. → Tightening torque: 18 Nm (13.0 ft. lb.) → Installing Starter - chapter on "Installing"
