Fitting Ground Strap To Engine

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

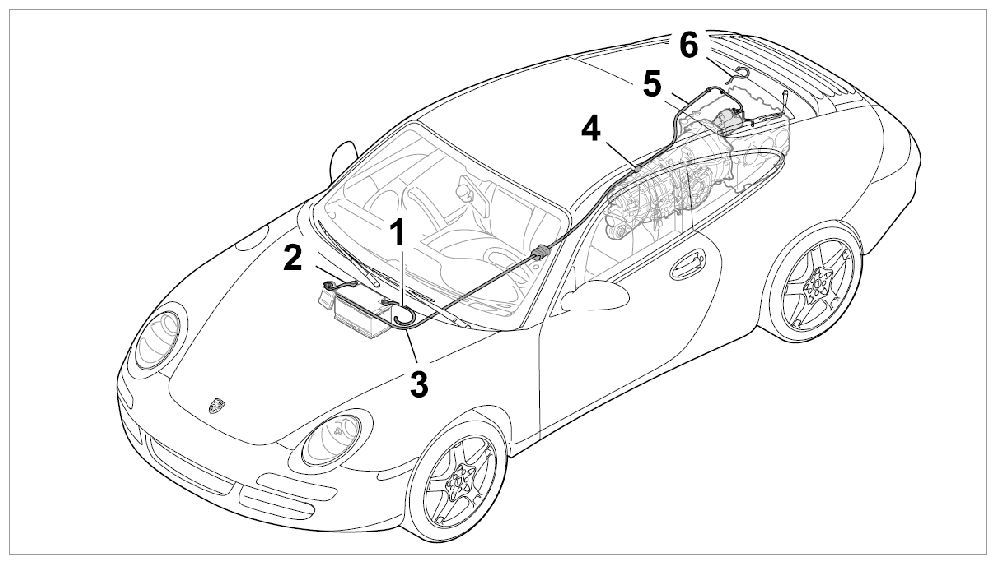

Fig 1: Identifying Wire Harness For Battery Wiring Installation Position
G09831301Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 6  - Engine ground strap
  1. Fit engine ground strap -6-  .

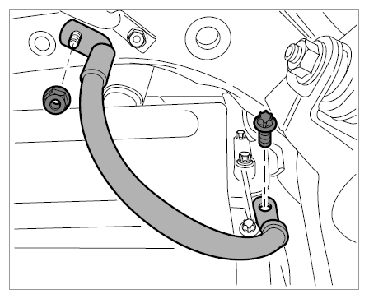

    Fig 2: Identifying Engine Ground Strap Screw
    G09831302Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Position ground strap and screw down with the fastening screw and fastening nut. → Tightening torque: 23 Nm (17 ft. lb.) → Tightening torque: 23 Nm (17 ft. lb.)
