Removing Wire Harness For Rear PASM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

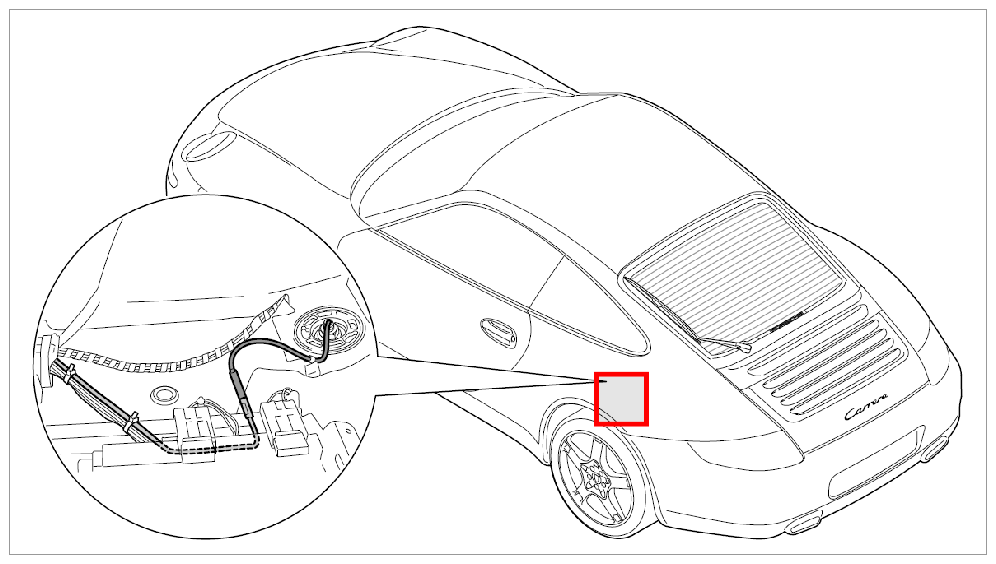

Fig 1: Identifying Wire Harness For Rear PASM Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

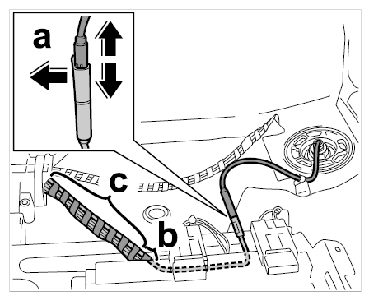

Unlock PASM plug connection -Arrow a- and disconnect it.

Fig 2: Unlocking PASM Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When cutting the PASM wire harness, make sure there is enough length of cable left to join to the new lines.
Cut wire harness for PASM at -b- and remove it.
Cut through the fabric tape at -c- and expose the remaining PASM wires.
