Installing Wire Harness For Front PASM

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Press the PASM plug connection together until it clicks into place.

Fig 1: Connecting Wire Harness For Rear PASM
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Select a place for the joint where there is enough space to join all the lines present.

Do not cut the lines too short in case they have to be laid in a different position if there is insufficient space in the area of the joint.

Information

The electric lines are located in the plenum panel and are thus exposed to the highest demands.

The greatest care must be used in the individual work steps for stripping insulation from, crimping, and shrinking/insulating the electric lines.

The procedure for stripping insulation from, crimping, and shrinking/insulating the electric lines must be complied with and observed. The procedures are described in detail in the Repair Kit For Harnesses Nr. 155-1 .

Crimping samples are to be prepared before beginning work.

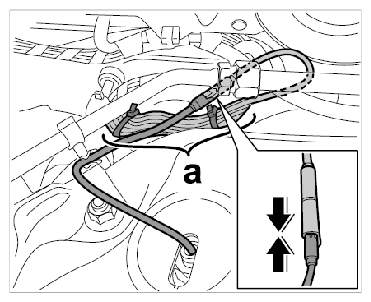

Crimp the lines at -a- .
1. 2.1. Cut off lines in different lengths (due to the shrink-fit connections).
2. 2.2. Slide shrink-fit hoses onto the lines.
3. 2.3. Strip 10 mm of insulation off the lines.
4. 2.4. Crimp the lines using crimping sleeves and the Manual Crimping Pliers from the Repair Kit For Wire Harnesses Nr. 155-1 .
5. 2.5. Slide the shrink-fit hoses over the crimp connections and carefully shrink them using the Hot-Air Blower With Special Nozzle (recommended accessories for the Repair Kit For Wire Harnesses) so that they are watertight.
6. 2.6. Wrap commercially available PVC tape all around the area of the connection points.
Secure the repaired area -a- to the main wire harness with tie-wraps.
