Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install hydraulic pump.
→Installing Hydraulic Pump "

Includes:
1. Fit pulley and drive belt. Observe rolling direction of previously used belts.
2. Fit the resonance tube.
3. Install air cleaner housing.
4. Connect the pressure and return lines to the underbody if necessary (if you have not already done so after draining the fluid).
Connect the battery.
→ 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
Fill hydraulic fluid (Pentosin) into the supply tank, bleed the steering system and check for leaks.
Then check the power-steering fluid level again.

→ 480201 CHECKING THE FLUID LEVEL FOR POWER STEERING

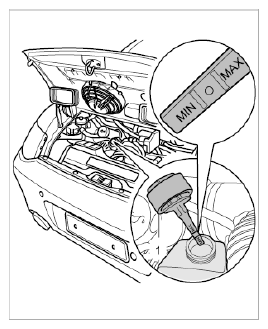

Fig 1: Checking Reservoir - As Of Model Year 2009
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit underbody panelling → 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY
