Removing Cover For Rear Underbody - Rear Section

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

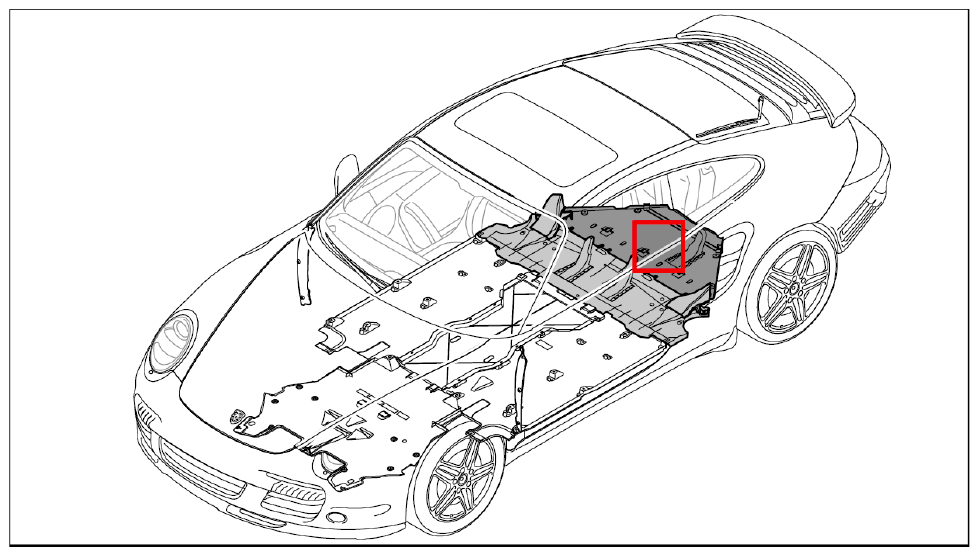

Fig 1: Cover For Rear Underbody Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -2- .

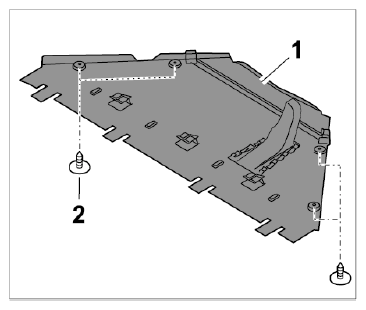

Fig 2: Removing Rear Cover - Rear Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove rear underbody cover -1- .
