Removing Turbocharger Oil Tank
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle can fall down
- Risk of squashing or crushing
- Risk of damage to the vehicle
→ Do not place any solid objects under the raised vehicle.
→ Ensure that the lifting platform is prevented from lowering.
→ Remove solid objects before lowering the vehicle.
→ Raise the vehicle only at the jacking points provided.
→ The outer jacking points should be used primarily.
CAUTION:
Hot components
- Risk of burns
→ Let hot components cool down.
→ Wear personal protective gear.
CAUTION:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:
- Torx screws: (E..) for external Torx, (T..) for internal Torx.
- Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
- Place a container under the work area to collect engine oil.
- Remove oil return line and vent line on turbocharger oil tank.

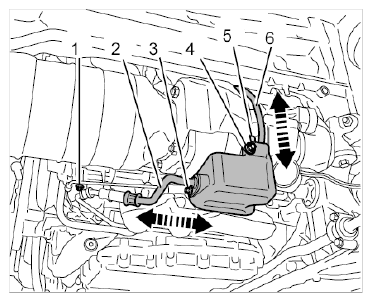

- 2.1. Unscrew fastening screw (E10, M6 x 12) -1- on the oil return line support -2- .
- 2.2. Unscrew fastening screw (E10, M6 x 12) -3- for the oil return line at the oil tank.
- 2.3. Pull oil return line out of the oil tank -arrow-
and collect draining oil.
Close off all openings with suitable stoppers.
- 2.4. Unscrew fastening screw (E10, M6 x 12) -5- for the vent line -6- .
- 2.5. Unscrew fastening screws (E10, M6 x 12) -4- for the heat shield.
- Remove oil tank.

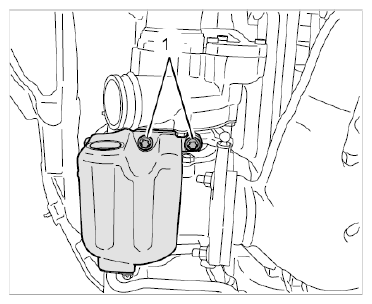

- 3.1. Unscrew two fastening screws (E10, M6 x 25) -1- on the oil tank.
- 3.2. Remove oil tank in a downward direction. Pull the vent line -6-
out of the oil tank when doing so -arrow-
.
Close off all openings with suitable stoppers.
