Installing Turbocharger Oil Tank
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle can fall down
- Risk of squashing or crushing
- Risk of damage to the vehicle
→ Do not place any solid objects under the raised vehicle.
→ Ensure that the lifting platform is prevented from lowering.
→ Remove solid objects before lowering the vehicle.
→ Raise the vehicle only at the jacking points provided.
→ The outer jacking points should be used primarily.
Information
Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:
- Torx screws: (E..) for external Torx, (T..) for internal Torx.
- Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
Information
- Replace all gaskets and O-rings.
- Use the lubricant Kluber Syntheso Glep (Part No. 000.043.204.68).
- Install oil tank.
- 1.1. Fit oil tank from below, inserting the vent line into the oil tank at the same time.

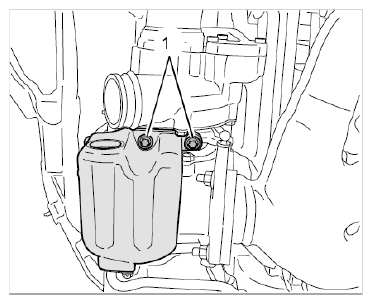

- 1.2. Fit and tighten two fastening screws (E10, M6 x 25) -1-
on the oil tank.
→ Tightening torque: 10 Nm (7.5 ft. lb.)

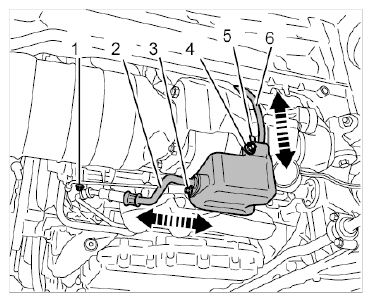

- Fit and tighten fastening screw (E10, M6 x 12) -4-
on the heat shield.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- Fit oil return line and vent line for the turbocharger at the oil tank.
- 3.1. Fit and tighten fastening screw (E10, M6 x 12) -5-
for the vent line -6-
.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 3.2. Insert oil return line -2-
into the oil tank -arrow-
and fit the fastening screw (E10, M6 x 12) -3-
. Tighten the screw.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 3.3. Fit and tighten fastening screw (E10, M6 x 12) for the oil return line holder -1-
.
→ Tightening torque: 10 Nm (7.5 ft. lb.)
- 3.1. Fit and tighten fastening screw (E10, M6 x 12) -5-
for the vent line -6-
.
