Removing Turbocharger Oil Tank

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Remove oil return line and vent line on turbocharger oil tank.
1. 1.1. Unscrew external Torx screw (E10, M6 x 12) -1- at the oil return line support -6- .
2. 1.2. Unscrew external Torx screw (E10, M6 x 12) -2- for the oil return line at the oil tank.
3. 1.3. Pull oil return line out of the oil tank -arrow- and collect draining oil.
4. 1.4. Unscrew external Torx screw (E10, M6 x 12) -3- for vent line -5- .
5. 1.5. Unscrew external Torx screw (E10, M6 x 12) -4- for shield.

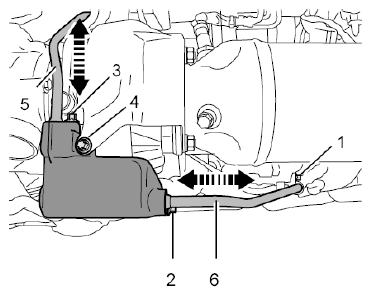

  Fig 1: Identifying Turbocharger Oil Tank With External Torx Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil tank.
1. 2.1. Unscrew two external Torx screws (E10, M6 x 25) -1- at the oil tank.

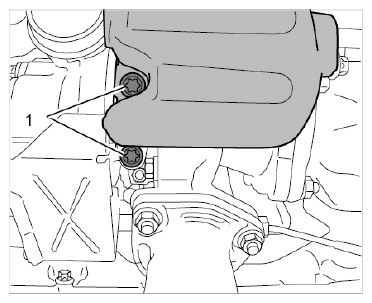

  Fig 2: Identifying Turbocharger Oil Tank, Underside
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Remove oil tank in a downward direction. Pull the vent line -5- out of the oil tank when doing so -arrow- .

  Fig 3: Identifying Turbocharger Oil Tank
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
