Installing Oil Feed Line - Cylinder Bank 4-6

→ Protect components from dirt and contamination.

→ Clean or replace dirty components.

1. Guide in oil feed line.
   1. 1.1. Protect the sealing flanges of the oil feed line from damage with a plug.
   2. 1.2. Do not remove plug until just before installation.

      Information

      We recommend that you use the following tools to secure the internal Torx screw (oil pressure line) on the turbocharger:

      • Torx screwdriver insert bits Nr.41 (Hazett 2223 lg T30).
      • Change-over ratchet insert bit Nr.186 (Hazett 6408).
      • Torque wrench Nr.90 Pos.2.

      Information

      • Lightly grease the O-rings on the three outer lines on the turbocharger using Kluber Syntheso Glep only.
      • The O-rings on the oil pressure lines must not be greased. Only apply a light coating of Kluber Syntheso Glep on the bore in the turbocharger.
2. Remove plug from bore. First connect oil feed line to turbocharger, then to cylinder head.
   1. 2.1. Fit two M6 x 20 external Torx screws in turbocharger by hand and fasten. → Tightening torque: 10 Nm (7.5 ft. lb.)
   2. 2.2. Fit new O-rings and coat lightly with Kluber Syntheso Glep.
3. Remove plugs from coolant lines before installing to allow remaining coolant to drain away.
4. Fit the other three lines on the turbocharger with new O-rings. → Tightening torque: 10 Nm (7.5 ft. lb.)
   1. 4.1. Installation is the same as for bank 1-3.
5. Fit new O-rings and coat lightly with Kluber Syntheso Glep.
6. Fit and tighten M6 x 12 external Torx screw at fastening point -2-  for coolant line and tighten. → Tightening torque: 10 Nm (7.5 ft. lb.)

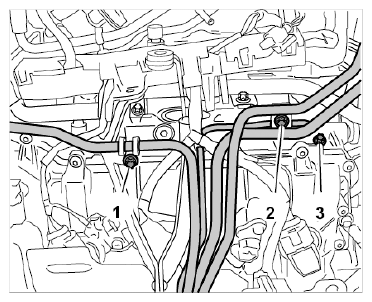

   Fig 1: Identifying Coolant Lines And Oil Line On Cylinder Bank 4-6

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Fit and tighten M6 x 12 external Torx screw for oil feed line to cylinder head. → Tightening torque: 10 Nm (7.5 ft. lb.)
8. Attach rubber-coated holding clamp -2-  for oil feed line -1-  to bracket.
   1. 8.1. Fit and tighten M6 x 12 external Torx screw.

      → Tightening torque: 10 Nm (7.5 ft. lb.)

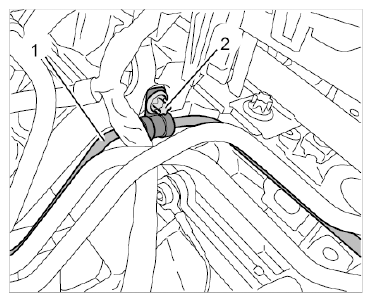

      Fig 2: Holding Clamp For Oil Feed Line, Bank 4-6

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Install intake manifold, cylinder bank 4-6.
   1. 9.1. Fix intake manifold in place on the support in the engine compartment and then fasten it to the turbocharger flange.
   2. 9.2. Fit and tighten M6 x 12 external Torx screws -Pfeile-  to turbocharger intake manifold. → Tightening torque: 10 Nm (7.5 ft. lb.)

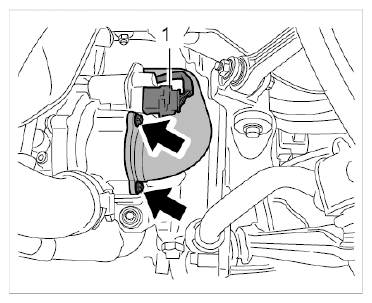

      Fig 3: Identifying Intake Manifold And Electronic Adjuster Connector 4-6

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 9.3. Connect cable plug -1-  to electronic adjuster.
   4. 9.4. Install vacuum line -3-  .
   5. 9.5. Connect positive crankcase ventilation -4-  .

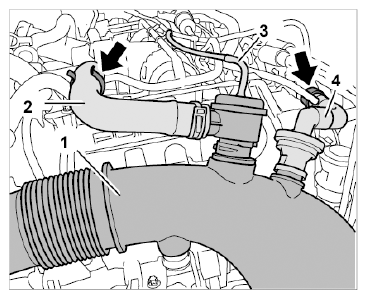

      Fig 4: Identifying Intake Manifold, Bank 4-6

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   6. 9.6. Fit new O-ring and coat lightly with Kluber Syntheso Glep.
