Removing Electronic Adjuster - Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

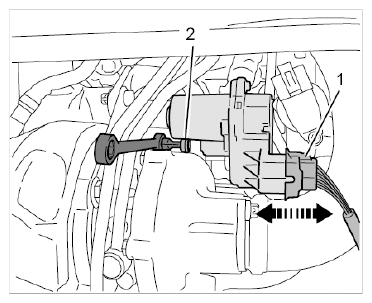

Release and pull off the cable plug -1- on the electronic adjuster.
1. 1.1. Unscrew cheese head bolt (hexagon socket a/f 5, M6 x 30) -2- on the electronic adjuster.
  Tool recommendation: 1/4-inch bit insert for hexagon socket (a/f 5) with ratchet ring wrench (a/f 8)

  Fig 1: Removing Electronic Adjuster For Turbocharger, Cylinder Bank 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

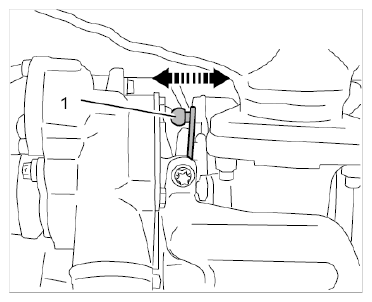

Lever off the ball joint -1- of the actuating rod on the turbocharger using a screwdriver.

Fig 2: Levering Off Ball Joint Actuating Rod For Electronic Adjuster, Cylinder Bank 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

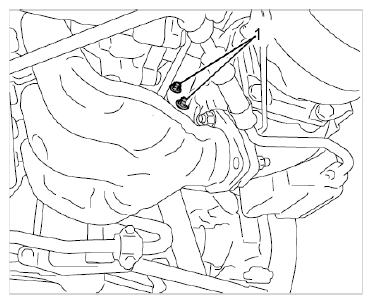

Unscrew cheese head bolts (hexagon socket a/f 5, M6 x 30) at the bottom -1- on the electronic adjuster.
Tool recommendation: Two extensions (3/8-inch) and socket-wrench insert with ball joint hexagon socket (a/f 5)

Fig 3: Identifying Bottom Fastening Screws On Electronic Adjuster, Cylinder Bank 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

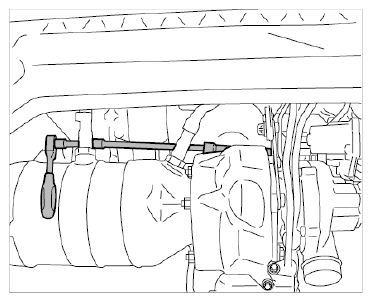

Using tools → Electronic adjuster for turbocharger

Fig 4: Removing Electronic Adjuster For Turbocharger Using Tools
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
Remove electronic adjuster.
