Removing Electronic Adjuster - Cylinder Bank 1-3

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Hot components

Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

Pull rubber cap -1- off the cover of the electronic adjuster and release and pull off the cable plug.

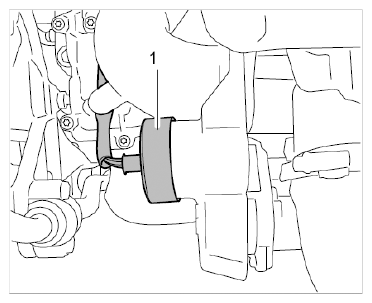

Fig 1: Identifying Cable Plug For Electronic Adjuster On Cylinder Bank 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:
- Torx screws: (E..) for external Torx, (T..) for internal Torx.
- Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)
Remove cover -1- for electronic adjuster and intake air line.
1. 2.1. Unscrew two external Torx screws (E10, M6 x 30) -2- for the intake air line and cover.

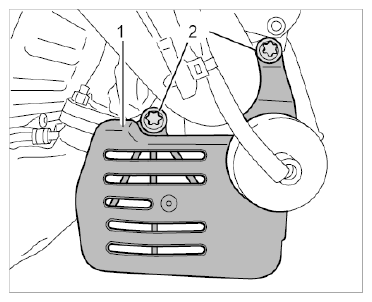

  Fig 2: Identifying Electronic Adjuster Cover, Cylinder Bank 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Carefully lever off the ball joint -1- of the actuating rod on the turbocharger using a screwdriver.
Unscrew three cheese head bolts (hexagon socket a/f 5, M6 x 30) -2- on the electronic adjuster.
Tool recommendation: Long socket-wrench insert for hexagon socket (a/f 5) with ball joint.

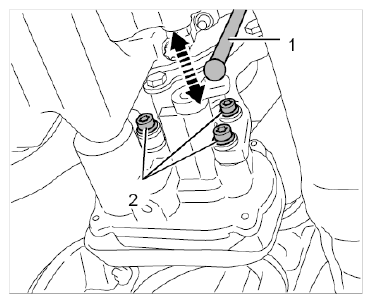

Fig 3: Identifying Ball Joint And Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using tools → Loosening/securing electronic adjuster on cylinder bank 1-3

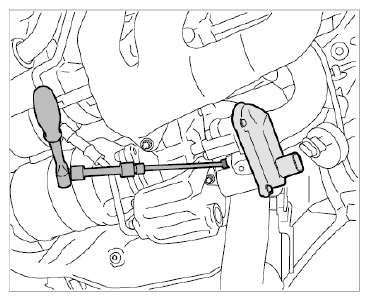

Fig 4: Loosening/Securing Electronic Adjuster On Cylinder Bank 1-3
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Replace the actuating rod for the adjustment mechanism after removing the electronic adjuster.
Remove electronic adjuster.
