Removing Charge-Air Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

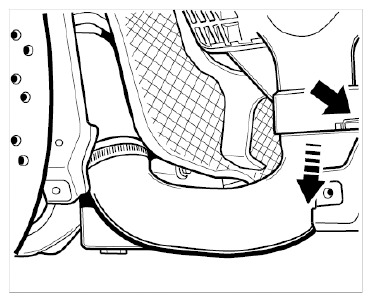

Remove rapid-action coupling from bottom of pressure hose and top of pressure hose by pulling the spring clamps -top arrow- on the charge-air cooler.
1. 1.1. Pull off hoses, check O-rings and replace them if necessary.

  Fig 1: Pulling Off Pressure Hose On Bottom Of Charge-Air Cooler
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

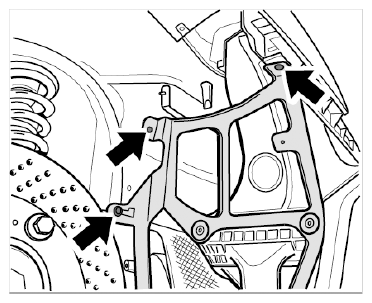

Unscrew two hexagon-head bolts (M8 x 16) -left arrows- and one M8 hexagon nut -top right arrow- on the charge-air cooler bracket in the wheel housing.

Fig 2: Locating Charge-Air Cooler Bracket In Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

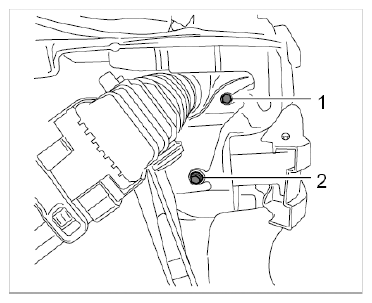

Unscrew one hexagon-head bolt (M8 x 16) -2- , one M8 hexagon nut -1- on the charge-air cooler bracket and one tapping screw at the rear side.

Fig 3: Identifying Hexagon-Head Bolt (M8 x 16) On Charge-Air Cooler Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

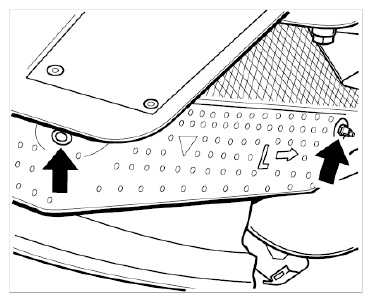

Screw off two speed nuts (a/f 13) on the underside of the heat protection panel -arrows- .

Fig 4: Locating Speed Nuts On Rear Heat Protection Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove charge-air cooler module.
