Removing Charge Air Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove rapid-action coupling from bottom of suction hose and top of pressure hose by pulling the spring clamps on the charge air cooler.

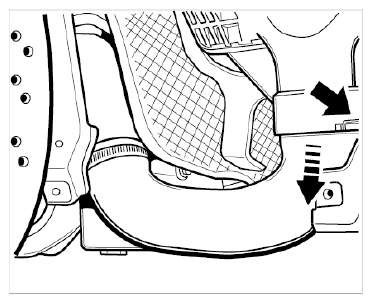

Fig 1: Removing Suction Hose On Bottom Of Charge Air Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Undo two hexagon-head bolts (M8 x 16) and one M8 hexagon nut on the charge air cooler bracket in the wheel housing.

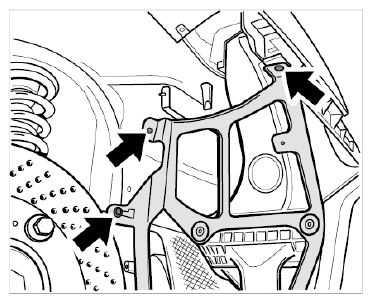

Fig 2: Identifying Charge Air Cooler Bracket In Wheel Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew one hexagon-head bolt (M8 x 16) -2- , one M8 hexagon nut -1- on the charge air cooler bracket and one tapping screw at the rear side.

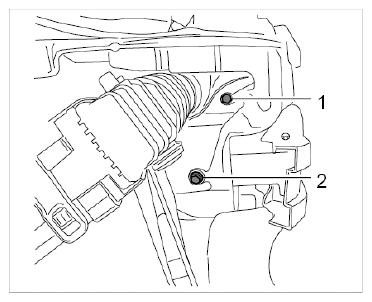

Fig 3: Locating M8 Hexagon Bolts On Rear Side
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw off two speed nuts (a/f 13) on the underside of the heat protection panel.

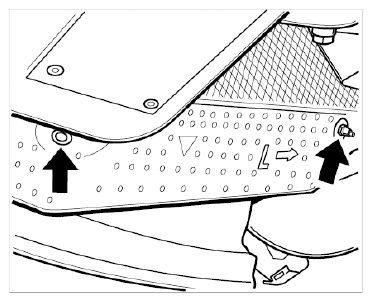

Fig 4: Locating Speed Nuts On Rear Heat Protection Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove charge air cooler module.
