Greasing Ball Joints

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a lifting platform.
→ 4X00IN01 LIFTING THE VEHICLE .

Information

If the actuating rods will not move or do not return automatically to their original position, replace the turbocharger. → 213019 REMOVING AND INSTALLING TURBOCHARGER .
Check adjustment mechanism on turbocharger for cylinder bank 1-3 and cylinder bank 4-6.

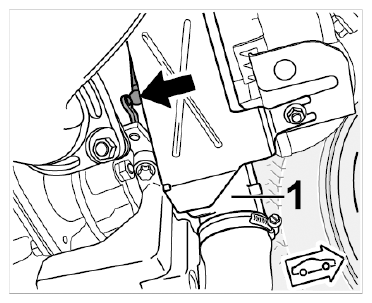

1. 2.1. Check adjustment mechanism -arrow- on turbocharger for cylinder bank 1-3 -1- .

  Fig 1: Identifying Position Of Actuating Rod For Cylinder Bank 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.1.1. To do this, press the actuating rod down as far as it will go.

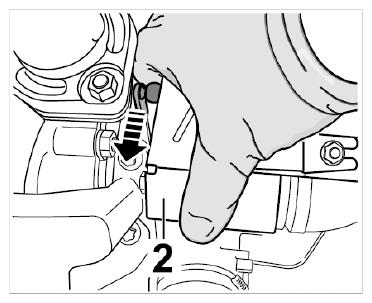

    Fig 2: Movement Of Actuating Rod For Cylinder Bank 1-3
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. 2.1.2. Check to see if the actuating rod returns automatically to its original position.
2. 2.2. Check adjustment mechanism -arrow- on turbocharger for cylinder bank 4-6 -1- .

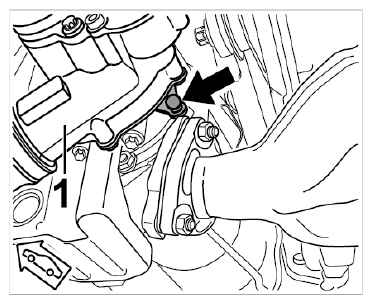

  Fig 3: Checking Adjustment Mechanism On Turbocharger For Cylinder Bank 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 2.2.1. Press the actuating rod up as far as it will go.

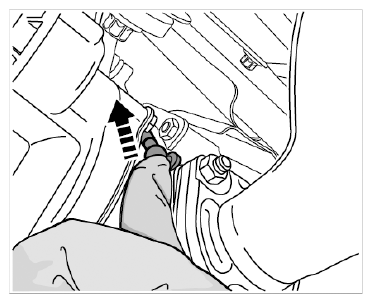

    Fig 4: Movement Of Actuating Rod For Cylinder Bank 4-6
    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. 2.2.2. Check to see if the actuating rod returns automatically to its original position.
Grease ball joints on adjustment mechanism for cylinder bank 1-3 and cylinder bank 4-6.
1. 3.1. Spray the lower -arrow 1- and upper ball joint -arrow 2- on cylinder bank 1-3 with WSP 5040 lubricant (Part No.: 999.917.778.00) until a film of lubricant is visible between the ball head and ball socket.

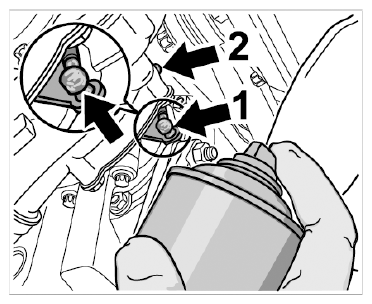

  Fig 5: Spraying Lubricant On Ball Joints On Actuating Rod For Cylinder Bank 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Spray lubricant WSP 5040 (Part No.: 999.917.778.00) on the bottom -arrow 1- and top ball joint -arrow 2- on cylinder bank 4-6 until a lubricating film is visible between the ball joint and ball socket.

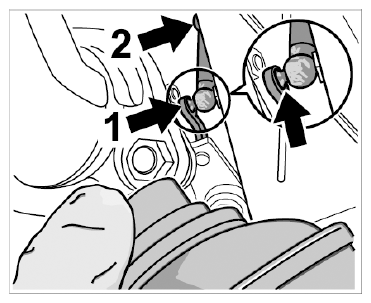

  Fig 6: Spraying Lubricant WSP 5040 On Bottom Actuating Rod Ball Joints For Cylinder Bank 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Actuate the adjustment mechanism several times on both sides.
Remove the vehicle from the lifting platform.
Adapt the electronic adjusters using PIWIS Tester II 9818 .
This is described under Guided Fault Finding in the PIWIS Tester.
