Removing Air Guide For Charge Air Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Removing air guide.
1. 1.1. Unscrew seven tapping screws -arrows- on the air intake.

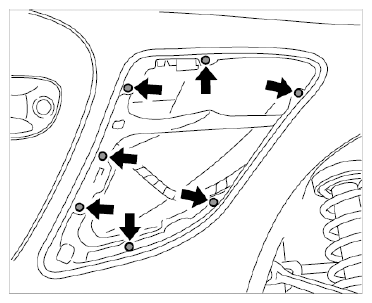

  Fig 1: Locating Air Intake Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Unscrew ten hexagon-head bolts (a/f 10, M6 x 18) -1- and one hexagon nut (a/f 10, M6) -2- in the wheel housing.
3. 1.3. Unscrew one M8 hexagon nut (a/f 13) and unclip the cover -3- .

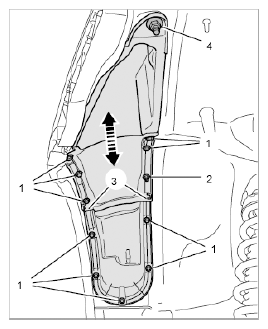

Fig 2: Removing Air Guide Bolts And Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide the air guide back out of the wheel housing.
1. 2.1. Swivel the air guide at the back downwards and guide it out of the side panel.
2. 2.2. Make sure not to damage the rubber lip on the air guide at the air intake.
