Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle at the prescribed jacking points. → 400000 LIFTING THE VEHICLE
Place oil collection pan under the transmission.
Remove the underbody panels. → 519419 REMOVING AND INSTALLING REAR TRIM - removing

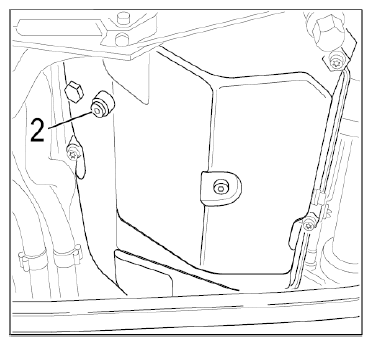

Unscrew control screw -2- .

Fig 1: Identifying Control Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To undo and tighten the cap nut for the charging valve, counter with a ring wrench!

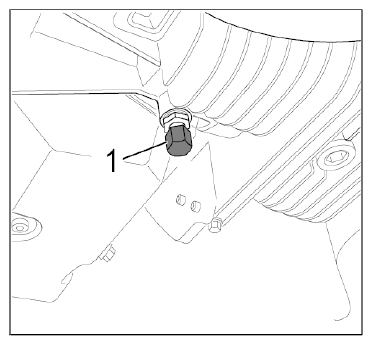

Screw off cap nut -1- for the charging valve.

Fig 2: Identifying Cap Nut And ATF Charging Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

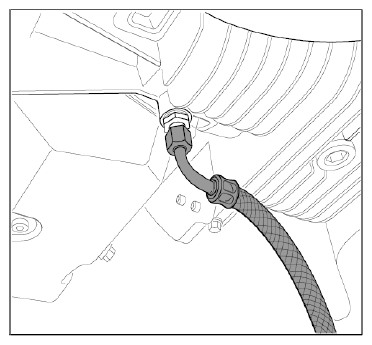

Screw connection hose 95071 onto charging valve.

Fig 3: Identifying Connection Hose On ATF Charging Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
