Removing Pulse Sender (Speed Sender)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Release and pull off cable plug.

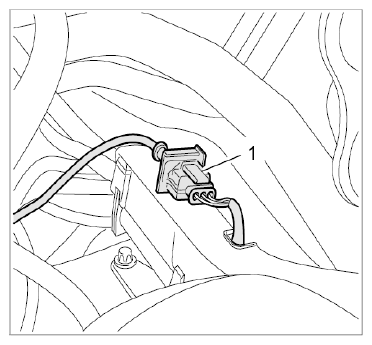

Fig 1: Identifying Pulse Sender Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Unclip and disconnect the cable plug -1- at the holder.
Remove pulse sender.
1. 2.1. Unscrew internal Torx screw (M6 x 16) -2- .

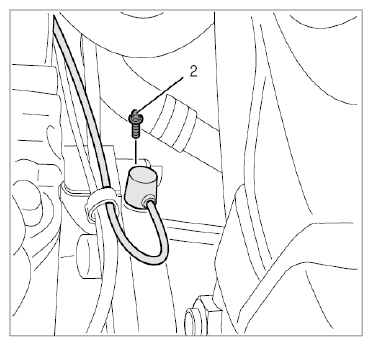

  Fig 2: Identifying Pulse Sender Internal Torx Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Remove the pulse sender.
