Installing Pulse Sender (Speed Sender)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install the pulse sender.

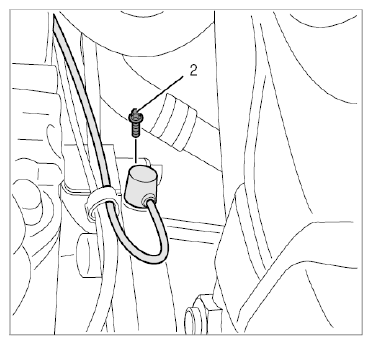

Fig 1: Identifying Pulse Sender Internal Torx Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Replace O-ring.
  Grease new O-ring with Kluber Syntheso Glep (Porsche Part No. 000.043.204.68) and fit it.
2. 1.2. Fit the pulse sender.
3. 1.3. Fit and tighten internal Torx screw (M6 x 16) -2- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)
Plug in cable plug -1- can clip it onto the holder.

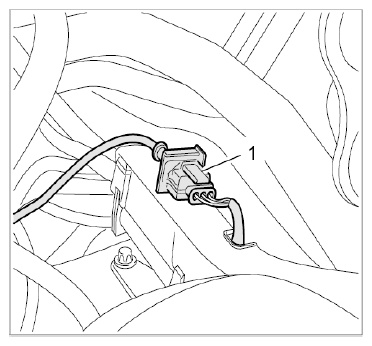

Fig 2: Identifying Pulse Sender Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
