Removing Pulse Sender (Speed Sender)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cable plug.

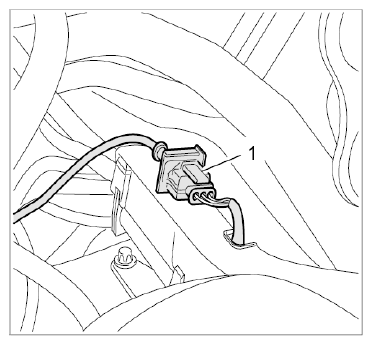

Fig 1: Identifying Pulse Sender Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Disconnect cable plug -1- and pull it out of the holder.
Remove cable rail and set it aside.
1. 2.1. Unscrew front external Torx screw (M6 x 25) -2- on the cable rail.

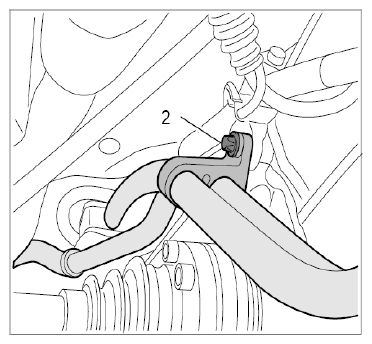

  Fig 2: Identifying Cable Rail Front External Torx Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Unscrew rear external Torx screw (M6 x 20) -3- on the cable rail.

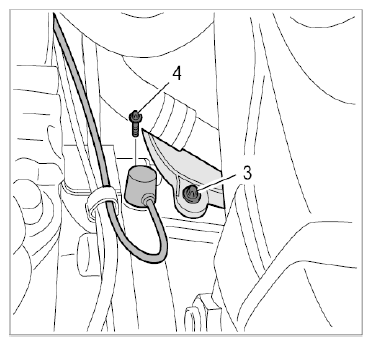

  Fig 3: Identifying Cable Rail Rear Screw And Pulse Sender Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove pulse sender (speed sender).
1. 3.1. Unscrew external Torx screw (M6 x 16) -4- on the pulse sender.
2. 3.2. Remove the pulse sender.
