Installing Pulse Sender (Speed Sender)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install the pulse sender (speed sender).

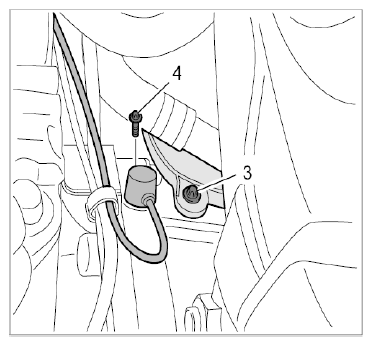

Fig 1: Identifying Pulse Sender Screw And Cable Rail Rear Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Replace O-ring.
  Grease and fit new O-rings with Kluber Syntheso Glep grease (Porsche Part No. 000.043.204.68).
2. 1.2. Fit pulse sender.
3. 1.3. Screw in and tighten external Torx screw (M6 x 16) -4- on the pulse sender.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
Install cable rail.
1. 2.1. Screw in and tighten rear external Torx screw (M6 x 20) -3- on the cable rail.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
2. 2.2. Screw in and tighten front external Torx screw (M6 x 25) -2- on the cable rail.
  → Tightening torque: 10 Nm (7.5 ft. lb.)

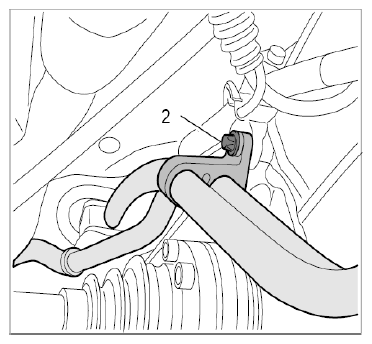

  Fig 2: Identifying Cable Rail Front External Torx Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect cable plug -1- .

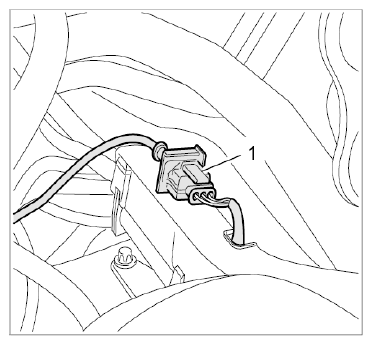

Fig 3: Identifying Pulse Sender Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
