Removing Spark Plugs

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Incorrect tool

Risk of damage to components

→ Use prescribed tool.

Unscrew spark plugs using Spark-Plug Socket Wrench Nr. 14 and Extension Nr. 15.
1. 1.1. The use of this tool prevents damage to the ceramic body.

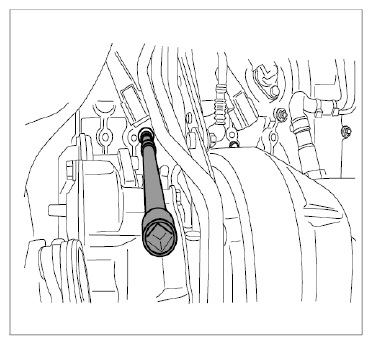

  Fig 1: Removing Spark Plugs On Cylinder 2
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
