Installing Spark Plugs
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Incorrect tool
- Risk of damage to components
→ Use prescribed tool.

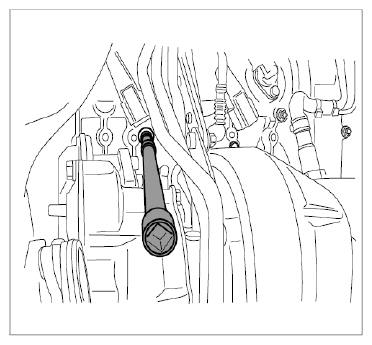

- Fit and tighten spark plugs using Spark-Plug Socket Wrench Nr. 14
and Extension Nr. 15
.
→ Tightening torque: 32 Nm (24 ft. lb.) +/-2 Nm (+/-1.5 ft. lb.)
→ Tightening torque: 25 Nm (19 ft. lb.) +3 Nm (+2 ft. lb.)
