Installing Hall Sender - Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

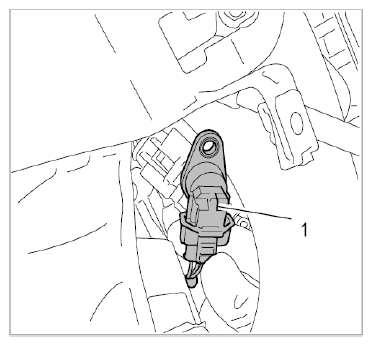

Connect cable plug -1- on the hall sender.

Fig 1: Connecting Hall Sender On Cylinder Bank 4-6 With Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Replace O-rings.
- Grease O-rings with a light coating of Kluber Syntheso Glep (Part No.: 000.043.204.68).

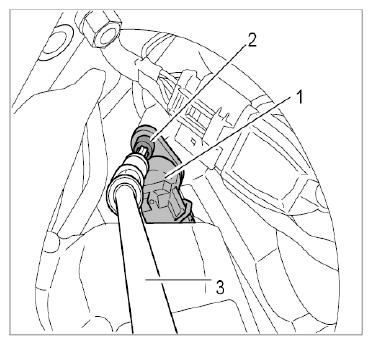

Fit hall sender -1- with a new O-ring and screw in and tighten the fastening screw (T30, M6 x 16) -2- .
→ Tightening torque: 10 Nm (7.5 ft. lb.)

Fig 2: Identifying Hall Sender On Cylinder Bank 4-6
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
