Installing Hall Sender

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit new O-ring. Grease O-ring lightly with Kluber Syntheso glep (available from Porsche Parts Service).
  2. Fit hall sender -2-  .
  3. Position and tighten inner Torx screw (M6 x 16) -1-  . → Tightening torque: 10 Nm (7.5 ft. lb.)
  4. Connect cable plugs to the hall sender and lock them. The cable plugs must engage audibly. Pull on the plugs to check that they are seated securely.

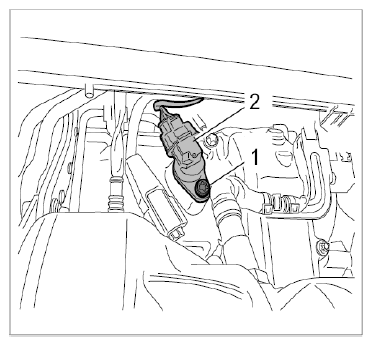

    Fig 1: Identifying Hall Sender
    G09819731Courtesy of PORSCHE CARS NORTH AMERICA, INC.
