Removing Ignition Rod Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Component overview:

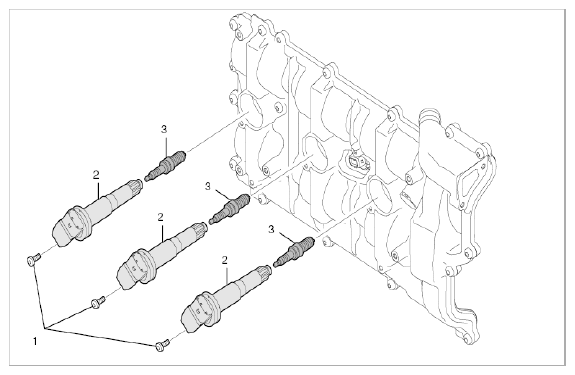

Fig 1: Identifying Ignition Rod Module Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner Torx screw, M6 x 16 (screw insert T30) → Tightening torque: 10 Nm (7.5 ft. lb.)
Ignition rod module
Spark plug

Disconnect cable plug -1- by pressing firmly on the locking lug and sliding the plug upwards.
1. 1.1. Unscrew inner Torx screw (M6 x 16) -2- and pull out ignition rod module.

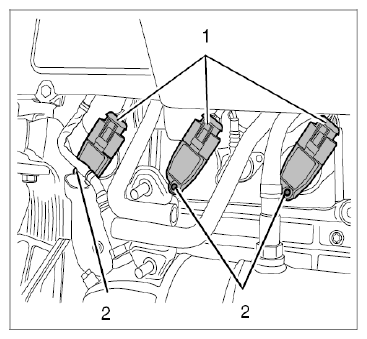

  Fig 2: Identifying Ignition Cable Plugs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

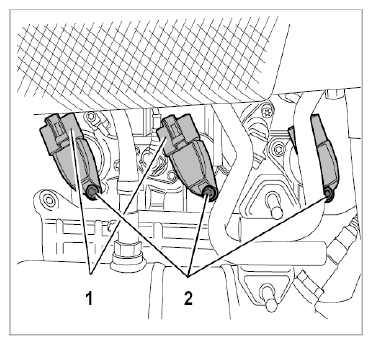

  Fig 3: Identifying Ignition Rod Modules
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
