Installing Ignition Rod Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Connect ignition rod module.
1. 1.1. Fit inner Torx screw (M6 x 16) -2- and tighten to the prescribed tightening torque.
2. 1.2. Connect cable plug -1- . When doing so, make sure you hear it latching into place and check that it is firmly seated by pushing it up.

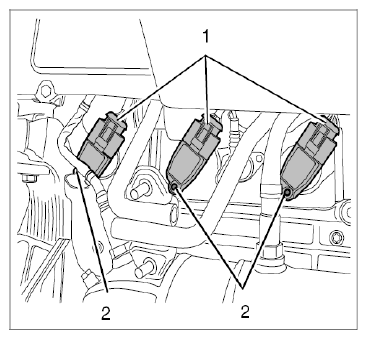

  Fig 1: Identifying Ignition Rod Modules
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

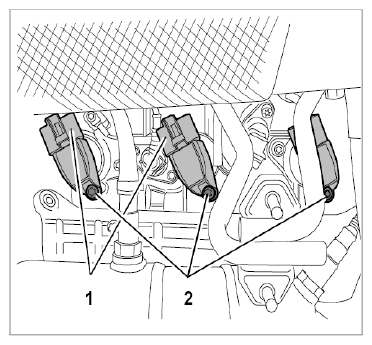

  Fig 2: Identifying Ignition Cable Plugs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
