Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install heat shields.
1. 1.1. Fit heat shield for cylinders 1-3 -1- using two Torx screws M6 x 12 -2- and tighten.

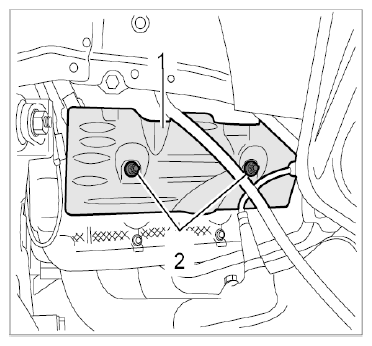

  Fig 1: Identifying Heat Shield (Cylinders 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Clip in oxygen sensor cable.
3. 1.3. Fit heat shield for cylinders 4-6 -1- using two Torx screws M6 x 12 -2- and tighten.

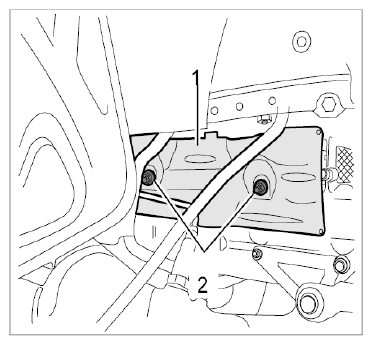

  Fig 2: Identifying Heat Shield (Cylinders 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Clip in oxygen sensor cable.
Mount rear wheels. Use the special tool socket-wrench insert P300 so as not to damage the wheel rims → 440519 REMOVING AND INSTALLING WHEEL .
