Removing Ignition Coil

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove ignition coil plug.
1. 1.1. Press on middle of cable plug and slide the plug with the rubber sleeve -1- upwards.

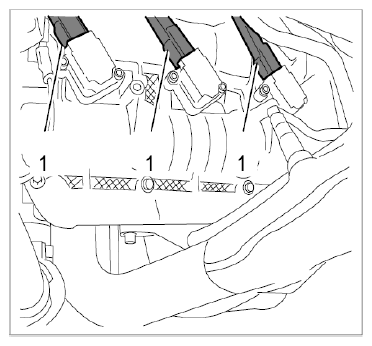

  Fig 1: Identifying Ignition Coil Plugs (Side 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

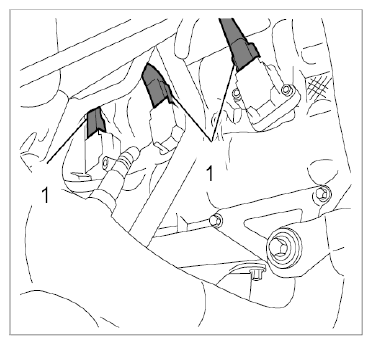

  Fig 2: Identifying Ignition Coil Plugs (Side 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Dismantle ignition coil.
1. 2.1. Undo two Torx screws M6 x 25 -2- .

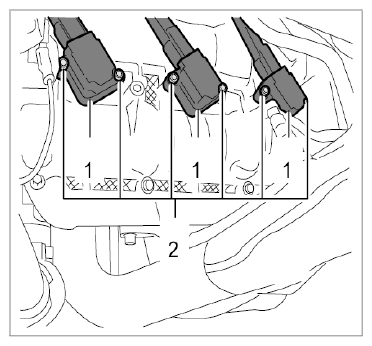

  Fig 3: Identifying Ignition Coil Torx Screws (Side 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

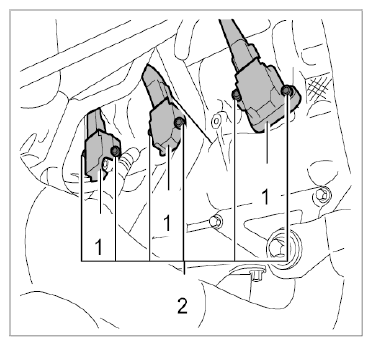

  Fig 4: Identifying Ignition Coil Torx Screws (Side 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Remove ignition coil -1- .
