Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle can fall down

Risk of squashing or crushing
Risk of damage to the vehicle

→ Do not place any solid objects under the raised vehicle.

→ Ensure that the lifting platform is prevented from lowering.

→ Remove solid objects before lowering the vehicle.

→ Raise the vehicle only at the jacking points provided.

→ The outer jacking points should be used primarily.

Remove rear wheels. Use the special tool socket-wrench insert P300 so as not to damage the wheel rims → 440519 REMOVING AND INSTALLING WHEEL .
Remove heat shields.

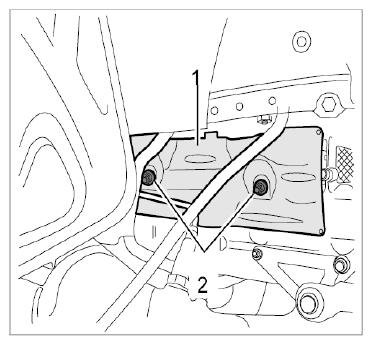

1. 2.1. On the heat shield for bank 1-3, -1- unscrew two Torx screws (M6 x 12) -2- and unclip the oxygen sensor cable.

  Fig 1: Identifying Heat Shield Torx Screws (Cylinders 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

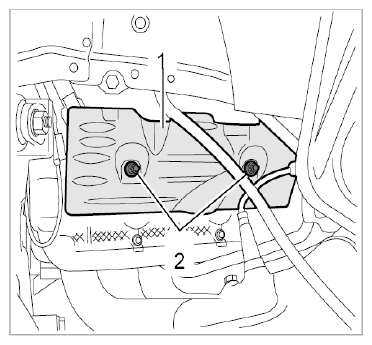

2. 2.2. On the heat shield for bank 4-6, -1- unscrew two Torx screws (M6 x 12) -2- and unclip the oxygen sensor cable.

  Fig 2: Identifying Heat Shield Torx Screws (Cylinders 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
