Installing Ignition Coil

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Insert ignition coil and tighten using two Torx screws M6 x 25 on the cylinder head cover. → tightening torque: 10 Nm (7.5 ft. lb.)

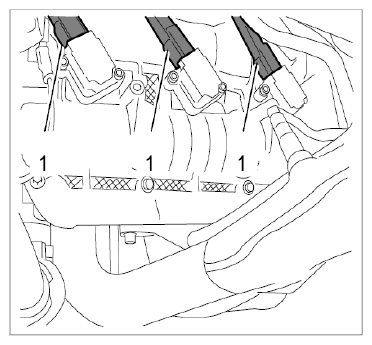

Fig 1: Identifying Ignition Coils Torx Screws (Side 1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide on ignition coil plug with rubber sleeve and plug in. Make sure you hear it latching into place, ensure it is firmly seated.

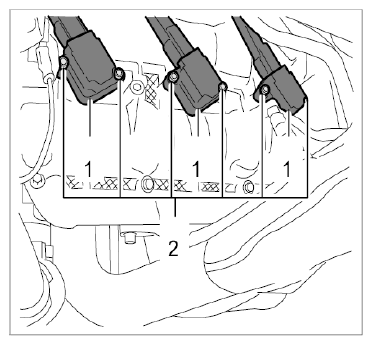

Fig 2: Identifying Ignition Coil Plugs (Side 1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
