Removing Bar Ignition Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and pull off the cable plug -2- on the bar ignition module.
1. 1.1. Unscrew fastening screw (internal Torx T30) M6 x 16 -3- .
2. 1.2. Loosen and pull out bar ignition module -1- .
3. 1.3. Turn the bar ignition module slightly in order to remove it if necessary.

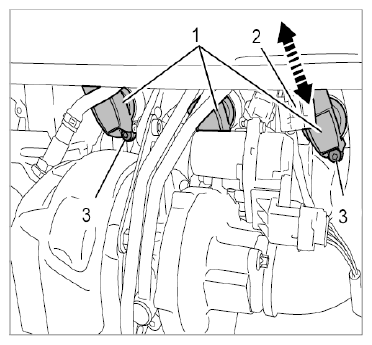

  Fig 1: Removing Bar Ignition Modules Cable Plugs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
