Installing Bar Ignition Module

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit bar ignition module -1- .
1. 1.1. Fit and tighten fastening screw (internal Torx T30, M6 x 16) -3- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)
2. 1.2. Connect cable plug -2- for bar ignition module.

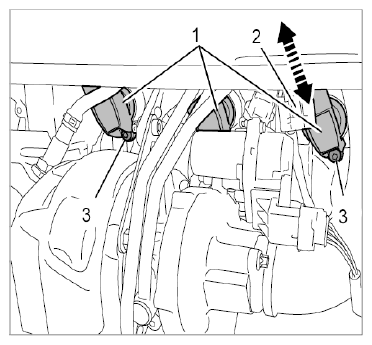

  Fig 1: Connecting Bar Ignition Modules Cable Plugs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
