Removing Ignition Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

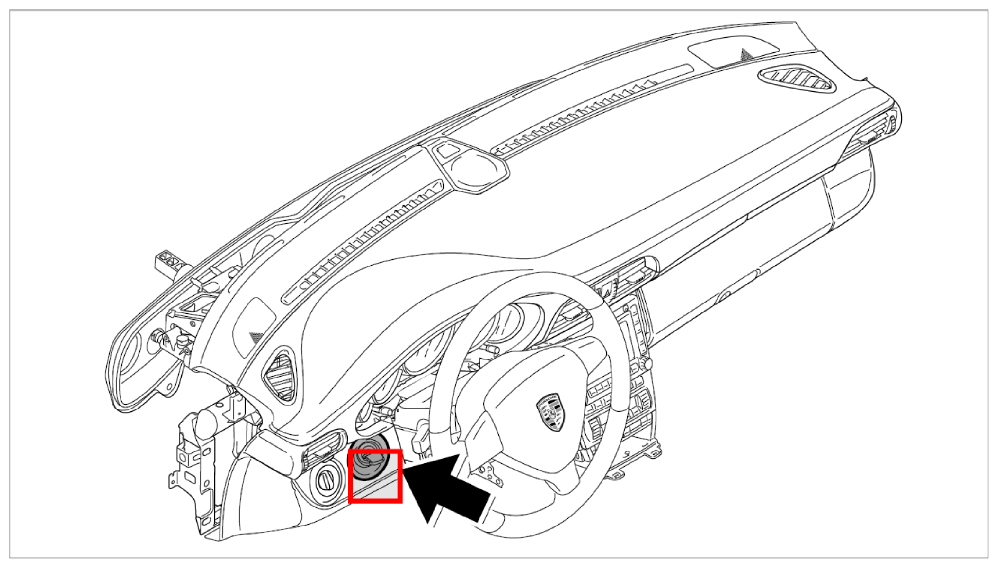

Fig 1: Locating Ignition Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Carefully lift up rubber sleeve on the ignition switch using a plastic spatula, for example, and remove it.

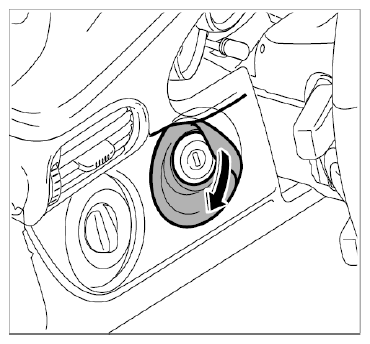

Fig 2: Removing Detachable Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn union nut using a narrow plastic spatula, for example, or using the special Wrench T10152 tool and unscrew the ring from the ignition starter switch.

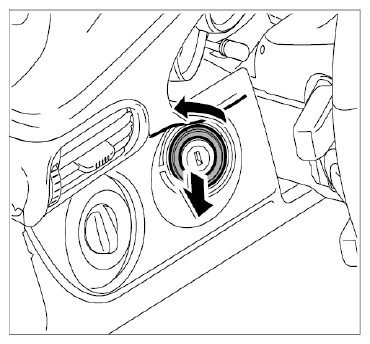

Fig 3: Unscrewing Union Nut From Ignition Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press ignition switch inwards and remove towards the bottom.
Release electric connector -a- and pull it off the ignition starter switch.

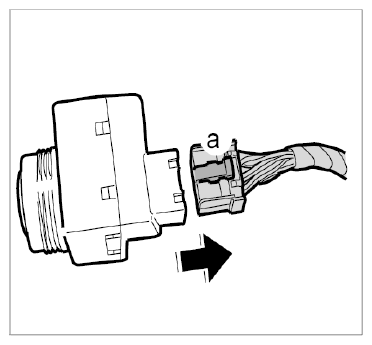

Fig 4: Releasing And Pulling Off Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
