Installing Ignition Switch

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect plug on ignition switch until it clicks into place.

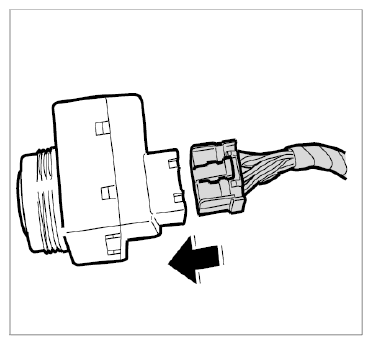

    Fig 1: Connecting Ignition Switch Electric Plug
    G09819702Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Position ignition switch in the switch panel from below. Position union nut, re-adjust switch and tighten union nut using wrench T10152. → Tightening torque: 1.6 Nm

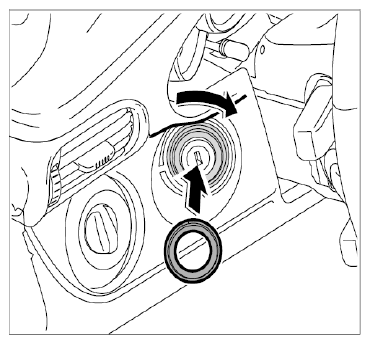

    Fig 2: Turning Ignition Switch Union Nut
    G09819703Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Place cover in position and slide it over the ignition switch, paying attention to the fitted shape.
