Removing spark plugs

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

1. Remove the 2 fastening screws M6 x 20 -arrows- for the heat shields on both cylinder heads and remove the shields.

Fig 1: Shield for ignition coils

Courtesy of PORSCHE OF NORTH AMERICA, INC.

2. Unplug cable plug for the ignition coils. To do this, slide the rubber grommets upward first. Press locking tabs on the respective ignition coil and pull off the individual plugs. In the interest of better accessibility, unplug the cable plugs for the solenoid hydraulic valves.

3. Loosen two M6 x 25 fastening screws -arrows- each per ignition coil and remove the 6 ignition coils individually.

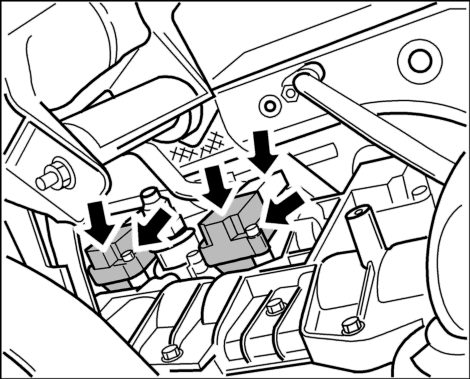

Fig 2: Screws for ignition coils

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Incorrect tool

Risk damage to components

→ Use prescibed tool

4. Unscrew the spark plugs using the tool spark plug socket wrench NR.14 with Extension, 3/8" WE 1637 .
