Installing Catalytic Converter

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace lock nuts, turbocharger flange seal and clamps

Fit new seal on turbocharger flange
Information
- Make sure not to damage the oxygen sensors and cables when removing and installing the catalytic converter.
Guide catalytic converter and heat shield into the vehicle.
Align rear silencer at the engine carrier -arrows- and position restraining straps.

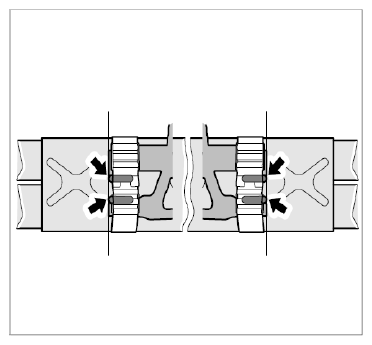

Fig 1: Locating Rear Silencer Position (Engine Side)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten M8 lock nuts -arrows-. → Tightening torque: 23 Nm (17 ft. lb.)

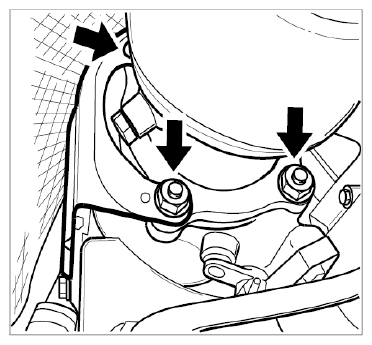

Fig 2: Locating Lock Nuts On Turbocharger Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten Torx screw (M6 x 12) on heat shield. → Tightening torque: 10 Nm (7.5 ft. lb.)
Tighten cheese head bolts (M8 x 50) -arrows- on restraining straps. → Tightening torque: 15 Nm (11 ft. lb.)

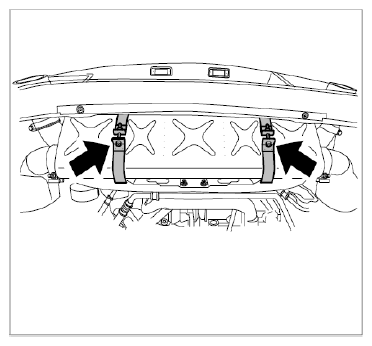

Fig 3: Locating Rear Silencer Restraining Straps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position new clamps and tighten M10 fastening nuts. → Adjustment value: 45° → Fitting angle for clamp → Tightening torque: 55 Nm (41 ft. lb.)

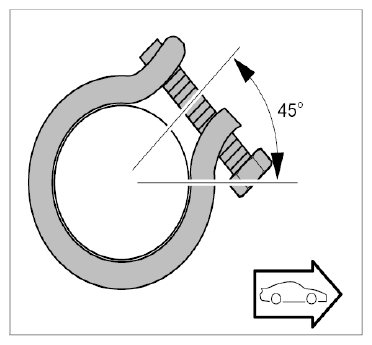

Fig 4: Identifying Clamp Angle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Route oxygen sensor cable and clip it in at the clip-in points.
Connect plug connections for oxygen sensors in the engine compartment.
→ WM 2400AW PRECAUTIONARY MEASURES WHEN HANDLING OXYGEN SENSORS (ALL MODELS) .
