Removing Shut-Off Valve, Side 1-3

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove fuel filter.
→ 206019 REMOVING AND INSTALLING FINE FUEL FILTER .

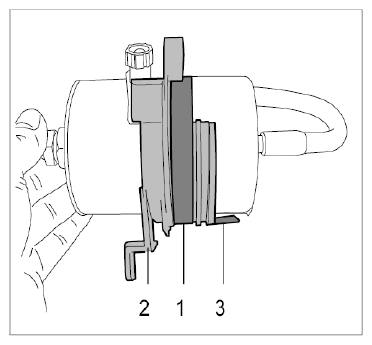

Fig 1: Removing Fuel Filter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove secondary-air pump.
→ 26651900 REMOVING AND INSTALLING SECONDARY-AIR PUMP .

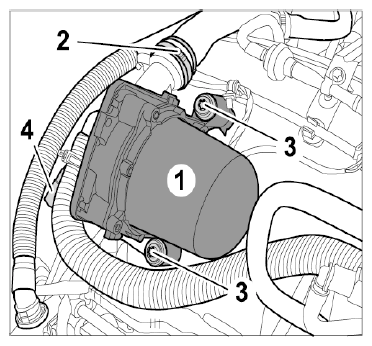

Fig 2: Removing/Installing Secondary-Air Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil-filter console.
→ 173319 REMOVING AND INSTALLING OIL-FILTER CONSOLE .

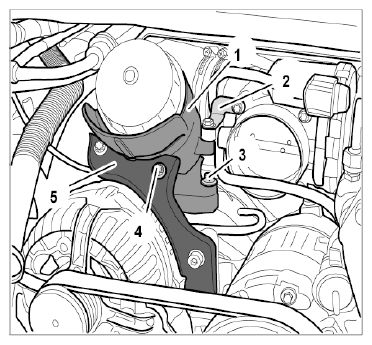

Fig 3: Removing/Installing Oil-Filter Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove intake-air distributor 1-3.
→ 244620 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR .

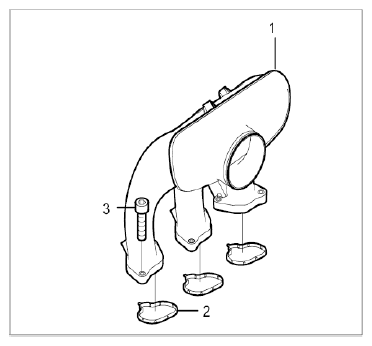

Fig 4: Removing/Installing Left Intake-Air Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove shut-off valve, side 1-3.
1. 5.1. Release hose and pull it off. Unscrew M6 screws -2- and remove shut-off valve -1- .

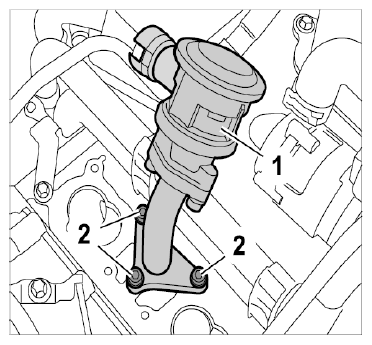

  Fig 5: Removing/Installing Shut-Off Valve (1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
