Installing Shut-Off Valve, Side 1-3

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install shut-off valve 1-3. Use a new O-ring.
1. 1.1. Fit shut-off valve -1- with new O-ring and screw in and tighten M6 screws -2- . Connect hose.
  → Tightening torque: 10 Nm (7.5 ft. lb.)

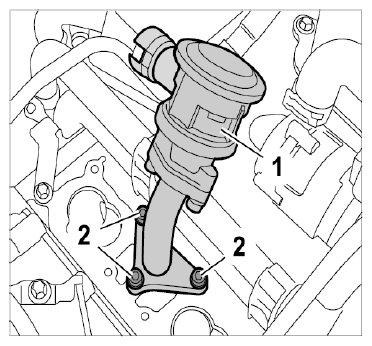

  Fig 1: Identifying Shut-Off Valve (Side 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install intake-air distributor 1-3.
→ 244620 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR .

Fig 2: Identifying Intake-Air Distributor (Side 1-3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install oil-filter console.
→ 173319 REMOVING AND INSTALLING OIL-FILTER CONSOLE .

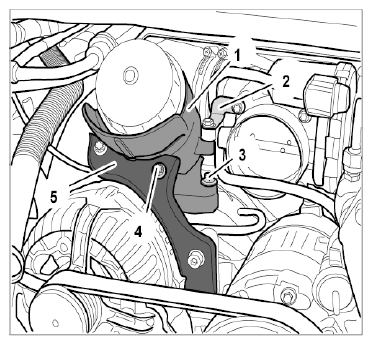

Fig 3: Identifying Oil-Filter Console Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install secondary-air pump.
→ 26651900 REMOVING AND INSTALLING SECONDARY-AIR PUMP .

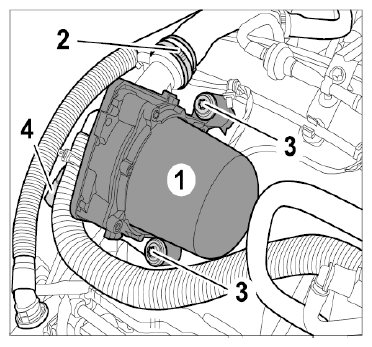

Fig 4: Identifying Secondary-Air Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install fuel filter.
→ 206019 REMOVING AND INSTALLING FINE FUEL FILTER .

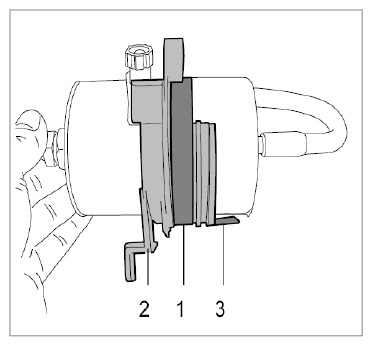

Fig 5: Installing Fuel Filter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
