Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Clip in tank vent at the holder.
1. 1.1. Fit cable plug and line.

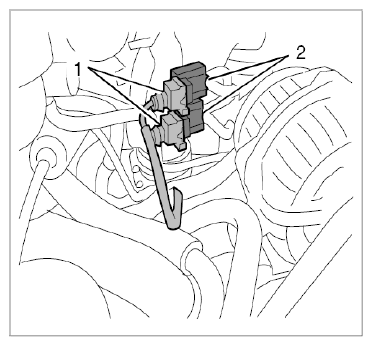

Fit two control valves -2- and connect cable plug -1- .

Fig 1: Identifying Solenoid Valves On Hose Assembly Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit coolant breather hose at the reservoir.
WARNING:
Risk of engine falling down.
- Danger of fatal injury, material damage.
→ Support the engine with the prescribed tool.
Raise the engine to installation position.
1. 4.1. Fit and tighten two M12 collar nuts on the engine mountings.
  → Tightening torque: 85 Nm (63 ft. lb.)
2. 4.2. Lower the jack using the engine retainer plate 9111/3 and move it out of the work area.
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING .
