On vehicles up to model year 2009: Install the starter. → 276019 REMOVING AND INSTALLING STARTER

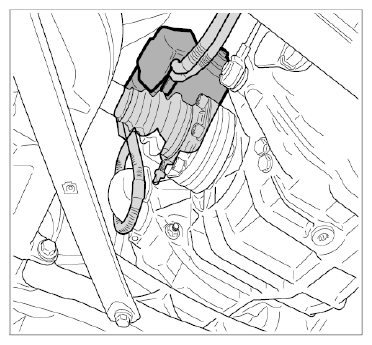

Fig 1: Identifying Starter (Manual Transmission)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Set the pressure accumulator in place and twist it into position using an oil filter strap. Use an open-ended wrench to tighten the pressure accumulator (tightening torque: 30 Nm (22 ftlb.)).
→ Tightening torque: 30 Nm (22 ftlb.).

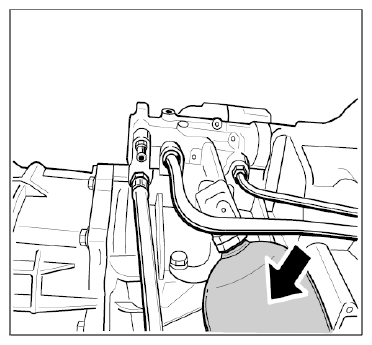

Fig 2: Locating Pressure Accumulator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit holder for the coolant lines on the transmission (underneath the pressure accumulator). Clip coolant lines into the holder on the underside of the transmission.
Fit left drive shaft on transmission flange.
→ Tightening torque: 90 Nm (67 ftlb.) .
Install (front) transverse strut. Tightening torque for fastening screws -arrows- .
→ Tightening torque: 65 Nm (48 ftlb.) .

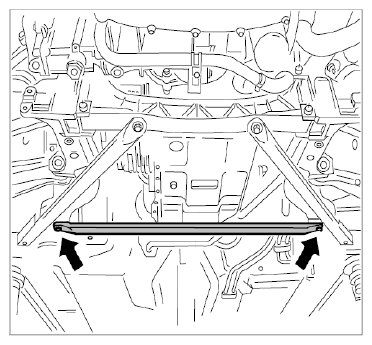

Fig 3: Identifying Transverse Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear underbody panelling → 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY .
Connect the battery and perform the necessary subsequent work → 2706IN00 WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
Fill Pentosin CHF hydraulic fluid into the reservoirs at the front (luggage compartment) and in the engine compartment. → 300101 CLUTCH: CHECKING FLUID LEVELS .
The reservoir (Pentosin tank) in the engine compartment is for the power steering system and the clutch booster circuit.

The reservoir (Pentosin tank) at the front (luggage compartment) is for the clutch actuating hydraulic system.
Bleed the clutch control system (actuating hydraulic system) → 300107 BLEEDING THE CLUTCH CONTROL SYSTEM .
Then check that the fluid level in the reservoir (Pentosin tank) at the front (in the luggage compartment) -2- is correct.

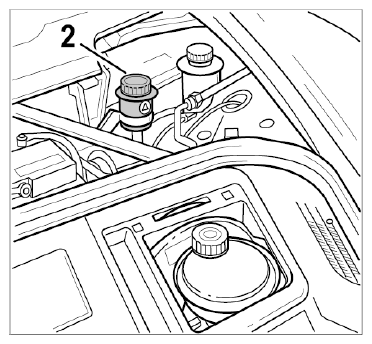

Fig 4: Identifying Pentosin Tank Reservoir
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Start the engine and bleed the clutch high-pressure hydraulic system (clutch booster circuit). To do this, press the clutch pedal approx. 10 times while the engine is running.
Then switch off the engine and correct the fluid level.
Check the fluid level (Pentosin) with the engine switched off and cold (approx. 20 °C) .
Requirement: Engine was started and left running (at idle speed) for approx. 20 seconds.
1. 11.1. Set the correct fluid level - up to MY 2009
  Open cap on the reservoir and wipe off dipstick.

  Close the cap and then open it again. The fluid level should be in the hatched area beneath the "Cold" marking (Cold marking at approx. 20 °C = max. level). Top up with Pentosin if necessary.

  The upper "Hot" marking is intended for a fluid temperature of approx. 80 °C.

  Do not add too much Pentosin! The respective markings are for the maximum fluid level at the "COLD" or "HOT" temperature.

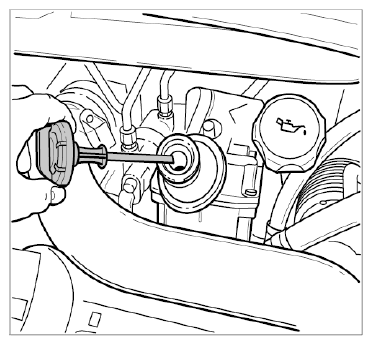

  Fig 5: Removing Cap On Reservoir
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 11.2. Set the correct fluid level - from MY 2010 onwards
  Open cap on the reservoir and wipe off dipstick.

  Close the cap and then open it again. The fluid level should be between the MIN and MAX markings .

  Top up with Pentosin if necessary.

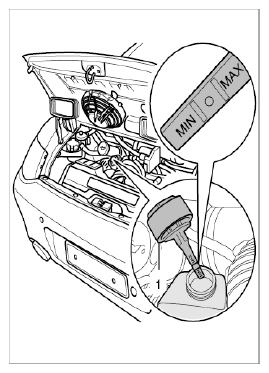

  Fig 6: Identifying Position Of Reservoir - As Of Model Year 2010
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

On vehicles up to model year 2009: Install the starter. → 276019 REMOVING AND INSTALLING STARTER

Fig 1: Identifying Starter (Manual Transmission)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Set the pressure accumulator in place and twist it into position using an oil filter strap. Use an open-ended wrench to tighten the pressure accumulator (tightening torque: 30 Nm (22 ftlb.)).
→ Tightening torque: 30 Nm (22 ftlb.).

Fig 2: Locating Pressure Accumulator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit holder for the coolant lines on the transmission (underneath the pressure accumulator). Clip coolant lines into the holder on the underside of the transmission.
Fit left drive shaft on transmission flange.
→ Tightening torque: 90 Nm (67 ftlb.).
Install (front) transverse strut. Tightening torque for fastening screws -arrows- .
→ Tightening torque: 65 Nm (48 ftlb.).

Fig 3: Locating Transverse Strut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install rear underbody panelling → 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY .
Connect the battery and perform the necessary subsequent work → 2706IN00 WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
Fill Pentosin CHF hydraulic fluid into the reservoirs at the front (luggage compartment) and in the engine compartment. → 300101 CLUTCH: CHECKING FLUID LEVELS .
The reservoir (Pentosin tank) in the engine compartment is for the power steering system and the clutch booster circuit.

The reservoir (Pentosin tank) at the front (luggage compartment) is for the clutch actuating hydraulic system.
Bleed the clutch control system (actuating hydraulic system) → 300107 BLEEDING THE CLUTCH CONTROL SYSTEM .
Then check that the fluid level in the reservoir (Pentosin tank) at the front (in the luggage compartment) -2- is correct.

Fig 4: Identifying Reservoir Pentosin Tank At Front (Luggage Compartment)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Start the engine and bleed the clutch high-pressure hydraulic system (clutch booster circuit). To do this, press the clutch pedal approx. 10 times while the engine is running.
Then switch off the engine and correct the fluid level.
Check the fluid level (Pentosin) with the engine switched off and cold (approx. 20 °C).
Requirement: Engine was started and left running (at idle speed) for approx. 20 seconds.
1. 11.1. Set the correct fluid level - up to MY 2009
  Open cap on the reservoir and wipe off dipstick.

  Close the cap and then open it again. The fluid level should be in the hatched area beneath the "Cold" marking (Cold marking at approx. 20 °C = max. level). Top up with Pentosin if necessary.

  The upper "Hot" marking is intended for a fluid temperature of approx. 80 °C.

  Do not add too much Pentosin! The respective markings are for the maximum fluid level at the "COLD" or "HOT" temperature.

  Fig 5: Removing Cap On Reservoir
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 11.2. Set the correct fluid level - from MY 2010 onwards
  Open cap on the reservoir and wipe off dipstick.

  Close the cap and then open it again. The fluid level should be between the MIN and MAX markings.

  Top up with Pentosin if necessary.

  Fig 6: Identifying Position Of Reservoir (As Of Model Year 2010)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
