Removing Intake Manifold Pressure Sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Unclip hose from the recirculating air valve on cylinder bank 4-6 and set it aside.
Release and pull off cable plug on intake manifold pressure sensor.
Unscrew one internal Torx screw (M6 x 15, T30) -1- .

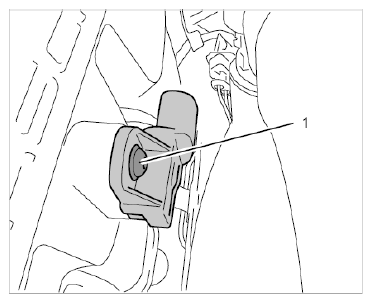

Fig 1: Identifying Fastening Screw On Intake Manifold Pressure Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull intake manifold pressure sensor -2- out of the intake manifold and remove it in an upward direction.

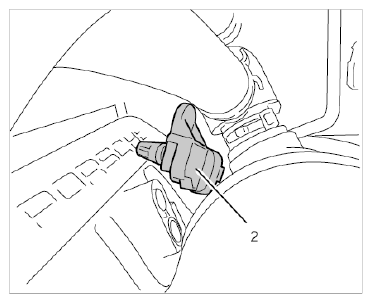

Fig 2: Identifying Intake Manifold Pressure Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Replace the sensor if the O-ring is damaged.
