Installing Intake Manifold Pressure Sensor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

Specifications for wrench sizes (a/f specifications) for screw heads are described as follows:

Torx screws: (E..) for external Torx, (T..) for internal Torx.
Hexagon-head bolts (internal and external hexagon): Wrench size (a/f)

Grease O-ring.
1. 1.1. Grease the O-ring with "Kluber Syntheso Glep" grease (Porsche part number 000.043.204.68).
2. 1.2. Replace the sensor if the O-ring is damaged.
Fit the intake manifold pressure sensor -2- into the intake manifold from above.

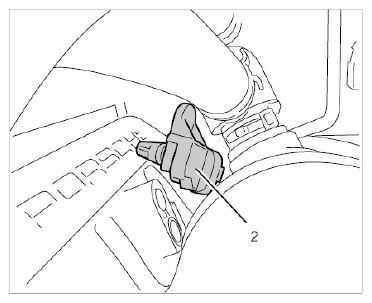

Fig 1: Identifying Intake Manifold Pressure Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit and tighten one internal Torx screw (M6 x 15, T30) -1- .
→ Tightening torque: 4 Nm (3 ft. lb.)

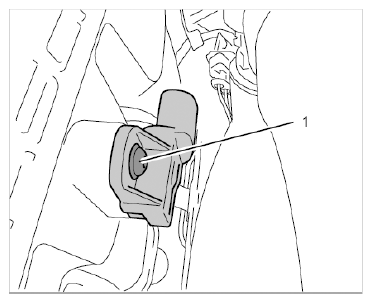

Fig 2: Identifying Fastening Screw On Intake Manifold Pressure Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on and engage the cable plug.
Clip hose from the recirculating air valve on cylinder bank 4-6 into the holder.
